Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

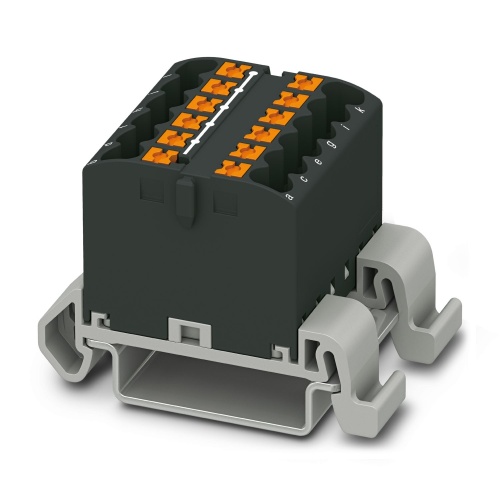

Phoenix Contact 3273168 Distribution block PTFIX 12X2,5-NS35A BK
Normally In Stock
Code: 62734
PTFIX 12X2,5-NS35A BK Phoenix 3273168 Distributor terminal block Push-in connection 690 V 24 Amp black Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.49
Sale Price
$3.74
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273168 The distribution block has a horizontal alignment and is characterized by specifications including a nominal voltage of 690 V, a nominal current of 24 A, with 12 connections available. It features push-in connection methods and comes in various cross-sectional sizes ranging from 0.14 mm2 to 4 mm2, suitable for mounting types such as NS 35/7,5 and NS 35/15.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
12
Terminal Block Width
31.5 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273168 CAD data International.dxfPhoenix 3273168 CAD data International.pdfPhoenix 3273168 CAD data International.stpPhoenix 3273168 Manufacturers declaration International-2.pdfPhoenix 3273168 Manufacturers declaration International.pdfPhoenix 3273168 Safety note English.pdfPhoenix 3273168 Tender Text English.zip
