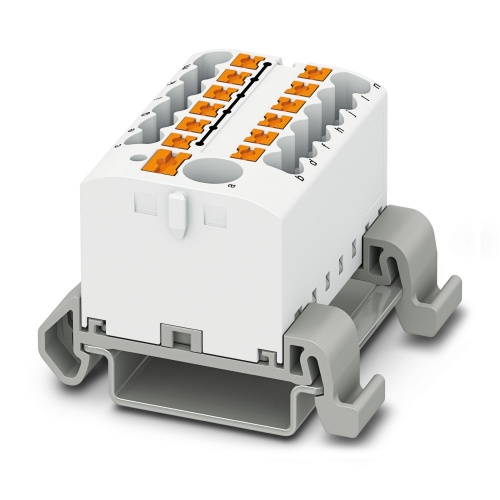

Phoenix Contact 3273232 Distribution block PTFIX 6/12X2,5-NS35A WH
Normally In Stock
Code: 62709
PTFIX 6/12X2,5-NS35A WH Phoenix 3273232 Distributor terminal block Push-in connection 690 V 24 Amp white Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.11
Sale Price
$4.26
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273232 The distribution block features a horizontal layout with integrated power supply, capable of handling a nominal voltage of 690V and a maximum current draw of 24A through 13 connections. The connection options include push-in contacts for loads and lines, allowing for varying cross-sections from 0.14mm² to 4mm² for loads and 6mm² for lines, with additional mounting types including NS35/7.5 and NS35/15.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
13
Terminal Block Width
41 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
White
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Downloads
Phoenix 3273232 CAD data International.dxfPhoenix 3273232 CAD data International.pdfPhoenix 3273232 CAD data International.stpPhoenix 3273232 Manufacturers declaration International-2.pdfPhoenix 3273232 Manufacturers declaration International.pdfPhoenix 3273232 Safety note English.pdfPhoenix 3273232 Tender Text English.zip
