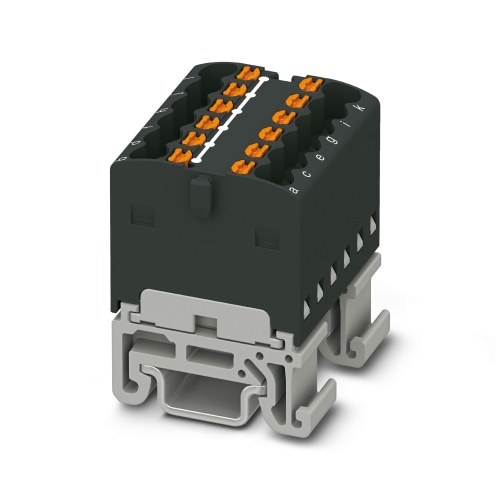

Phoenix Contact 3002968 Distribution block PTFIX 12X1,5-NS15A BK
Normally In Stock
Code: 62697
PTFIX 12X1,5-NS15A BK Phoenix 3002968 Distributor terminal block Push-in connection 500 V 17.5 Amp black Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$6.79
Sale Price
$5.66
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3002968 The product has a distribution block with internal bridging and specifications include a nominal voltage of 500 V, a nominal current of 17.5 A, and 12 connections that use a push-in connection method. The cross-sectional area of the conductor ranges from 0.14 mm2 to 2.5 mm2 and is mounted using an NS 15 type, with a black coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
12
Terminal Block Width
24.9 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Clear arrangement thanks to marking of all terminal points
Convenient test options, thanks to test openings at every terminal point
Space-saving potential distribution, thanks to compact micro potential distributors
Flexible use, thanks to DIN rail and direct mounting
Space-saving, thanks to the compact design
Downloads
Phoenix 3002968 CAD data International.dxfPhoenix 3002968 CAD data International.pdfPhoenix 3002968 CAD data International.stpPhoenix 3002968 Manufacturers declaration International-2.pdfPhoenix 3002968 Manufacturers declaration International.pdfPhoenix 3002968 Safety note English.pdfPhoenix 3002968 Tender Text English.zip
