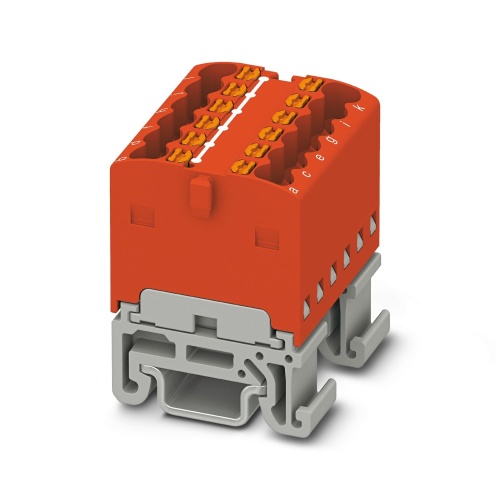

Phoenix Contact 3002931 Distribution block PTFIX 12X1,5-NS15A RD
Normally In Stock
Code: 62638
PTFIX 12X1,5-NS15A RD Phoenix 3002931 Distributor terminal block Push-in connection 500 V 17.5 Amp red Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.66
Sale Price
$4.72
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

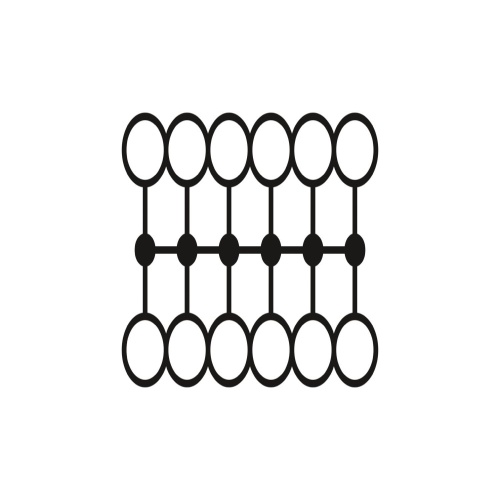

Phoenix Contact 3002931 The specified distribution block features a bridged internal design and has an electrical rating of 500 volts with a nominal current capacity of 17.5 amps. It accommodates 12 connections through push-in connections, while the cross-sectional area ranges between 0.14 mm² to 2.5 mm². The mounting type is NS15, and the block's exterior is colored red.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
12
Terminal Block Width
24.9 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Red
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Clear arrangement thanks to marking of all terminal points
Convenient test options, thanks to test openings at every terminal point
Space-saving potential distribution, thanks to compact micro potential distributors
Space-saving, thanks to the compact design
Flexible use, thanks to DIN rail and direct mounting
Downloads
Phoenix 3002931 CAD data International.dxfPhoenix 3002931 CAD data International.pdfPhoenix 3002931 CAD data International.stpPhoenix 3002931 Manufacturers declaration International-2.pdfPhoenix 3002931 Manufacturers declaration International.pdfPhoenix 3002931 Safety note English.pdfPhoenix 3002931 Tender Text English.zip
