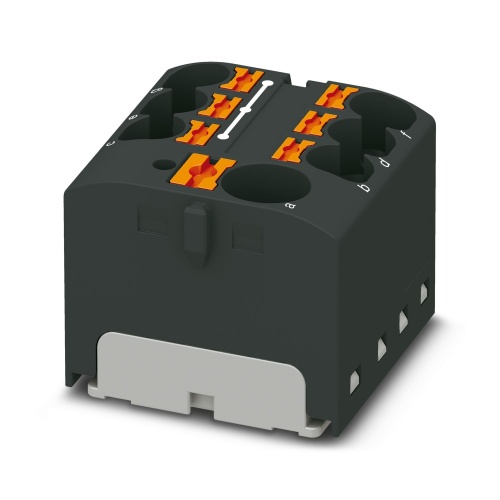

Phoenix Contact 3274002 Distribution block PTFIX 10/6X4-G BK
Normally In Stock
Code: 62623
PTFIX 10/6X4-G BK Phoenix 3274002 Distributor terminal block Push-in connection 450 V 32 Amp black Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$6.43
Sale Price
$5.36
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

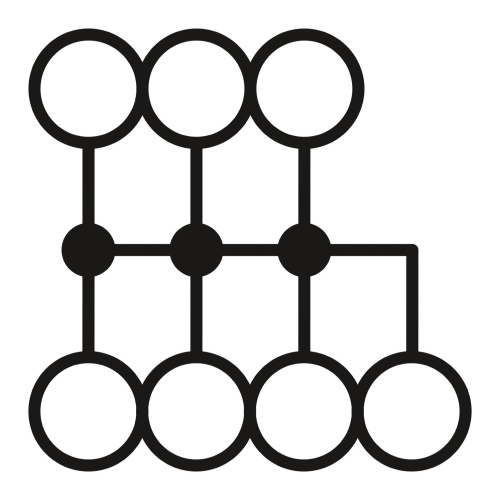

Phoenix Contact 3274002 A distribution block with a bridged internal design features a nominal voltage of 450V and a nominal current of 41A, accommodating up to seven connections using push-in connectors, while load contacts range in size from 0.2mm² to 6mm² and line contacts are rated for 10mm², mounted using an adhesive and available in black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
27.9 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Fast installation with ready-to-connect distribution blocks and device terminal blocks
Significant space savings due to the minimal size
Flexible mounting options with various mounting adapters and special adhesive versions
Color-coded assignment of conductors and terminal points for intuitive and safe installation
Standardized accessories – the blocks can be extended, tested, and marked with the CLIPLINE complete accessories without any loss of pitch
Downloads
Phoenix 3274002 CAD data International.dxfPhoenix 3274002 CAD data International.pdfPhoenix 3274002 CAD data International.stpPhoenix 3274002 Manufacturers declaration International-2.pdfPhoenix 3274002 Manufacturers declaration International.pdfPhoenix 3274002 Package Slip International.pdfPhoenix 3274002 Safety note English.pdfPhoenix 3274002 Tender Text English.zip
