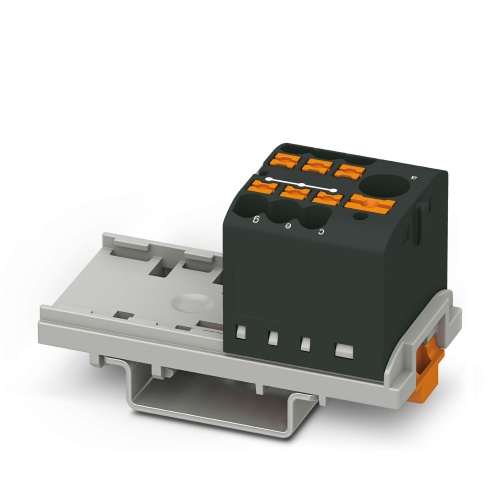

Phoenix Contact 3273080 Distribution block PTFIX 6/6X2,5-NS35 BK
Normally In Stock
Code: 62594
PTFIX 6/6X2,5-NS35 BK Phoenix 3273080 Distributor terminal block Push-in connection 690 V 24 Amp black Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.87
Sale Price
$2.39
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273080 A distribution block features a vertical alignment and integrated supply with specifications including an operational voltage of 690V and a maximum current draw of 24A through seven different connections that utilize push-in connection and load contact methods. The cross-sectional areas for line contacts range from 0.5-10mm2, while push-in connections cater to smaller cross-sections from 0.14-4mm2, with the block itself being mounted using the NS35/7.5 or NS35/15 mounting types in a black coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Width
28.6 mm
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting

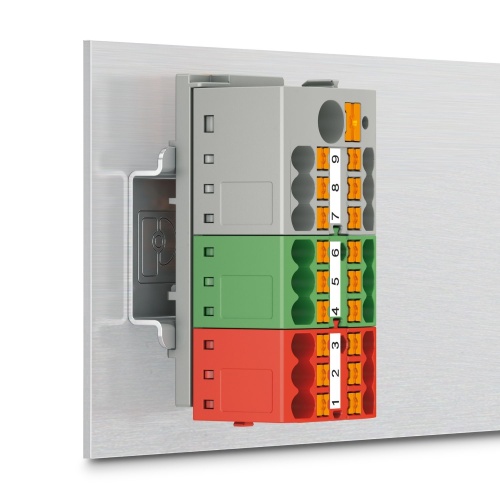

Clear wiring, thanks to eleven different color variants
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging

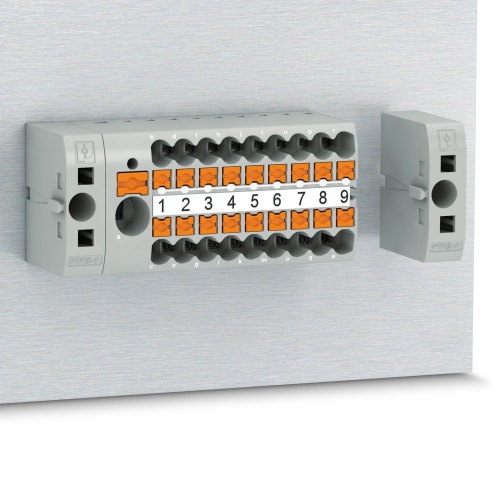

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Downloads
Phoenix 3273080 CAD data International.dxfPhoenix 3273080 CAD data International.pdfPhoenix 3273080 CAD data International.stpPhoenix 3273080 Manufacturers declaration International-2.pdfPhoenix 3273080 Manufacturers declaration International.pdfPhoenix 3273080 Safety note English.pdfPhoenix 3273080 Tender Text English.zip
