Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

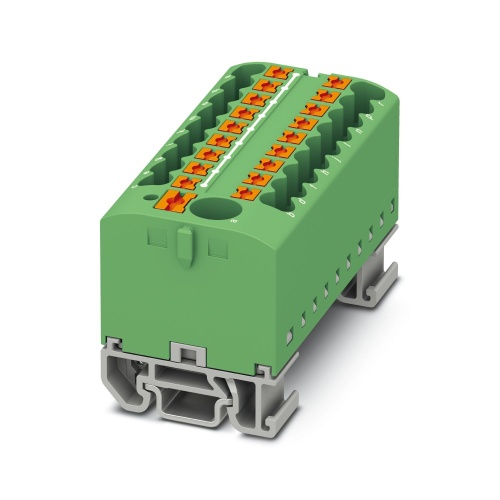

Phoenix Contact 3274218 Distribution block PTFIX 6/18X2,5-NS15A GN
Normally In Stock
Code: 62534
PTFIX 6/18X2,5-NS15A GN Phoenix 3274218 Distributor terminal block Push-in connection 690 V 24 Amp green Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$9.18
Sale Price
$7.65
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

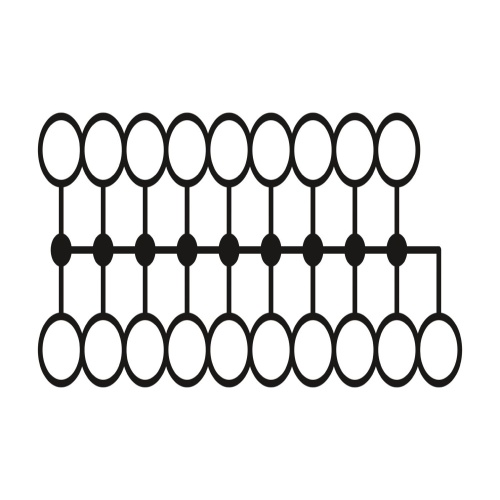

Phoenix Contact 3274218 This distribution block has a horizontal alignment and comes with an integrated supply, featuring nominal voltages of 690V and currents up to 24A. It has 19 connection points, allowing for push-in connections as well as load contacts and line contacts, with different cross sections ranging from 0.14mm2 to 10mm2. The mounting type is NS15 and the color is green.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Width
56.5 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Green
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

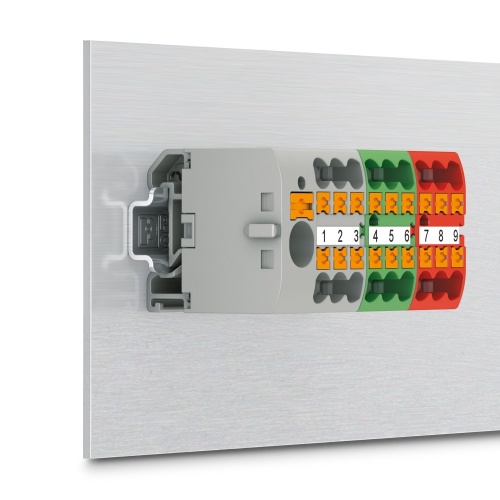

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3274218 CAD data International.dxfPhoenix 3274218 CAD data International.pdfPhoenix 3274218 CAD data International.stpPhoenix 3274218 Manufacturers declaration International-2.pdfPhoenix 3274218 Manufacturers declaration International.pdfPhoenix 3274218 Safety note English.pdfPhoenix 3274218 Tender Text English.zip
