Phoenix Contact 3273228 Distribution block PTFIX 6/12X2,5-NS35A GN
Normally In Stock
Code: 62531
PTFIX 6/12X2,5-NS35A GN Phoenix 3273228 Distributor terminal block Push-in connection 690 V 24 Amp green Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.11
Sale Price
$4.26
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

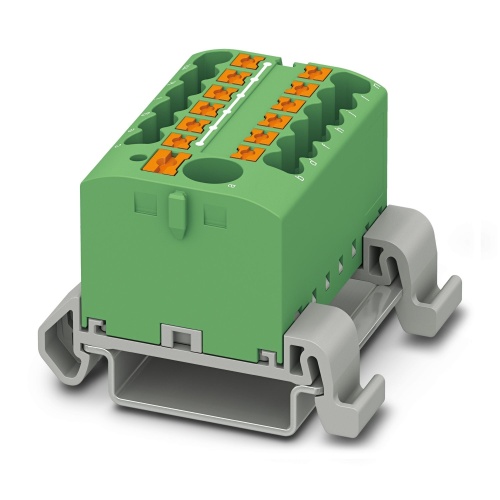

Phoenix Contact 3273228 A distribution block is available with a horizontal alignment and integrated supply, suitable for use at a nominal voltage of 690V and with a maximum current rating of 24A. The block has 13 connections, using push-in and load contact methods, and features varying cross-sectional areas ranging from 0.14mm² to 4mm². It also includes line contacts with rated cross-sections of up to 6mm² and smaller areas between 0.5mm² and 10mm², and is mounted using the NS 35/7.5 or NS 35/15 type. The block's outer casing has a green color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
13
Terminal Block Width
41 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Green
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

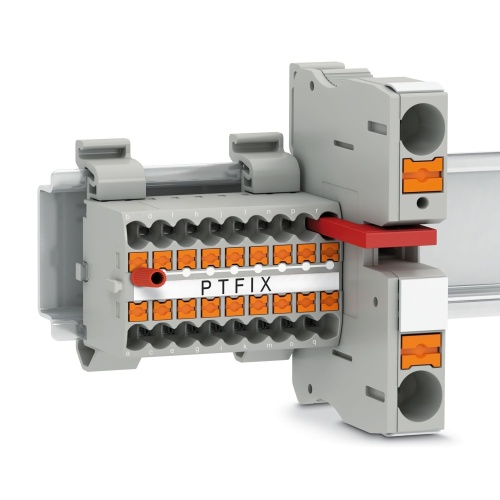

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Downloads
Phoenix 3273228 CAD data International.dxfPhoenix 3273228 CAD data International.pdfPhoenix 3273228 CAD data International.stpPhoenix 3273228 Manufacturers declaration International-2.pdfPhoenix 3273228 Manufacturers declaration International.pdfPhoenix 3273228 Safety note English.pdfPhoenix 3273228 Tender Text English.zip
