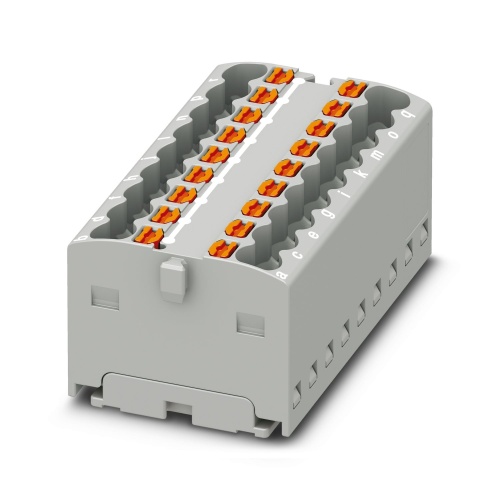

Phoenix Contact 3002804 Distribution block PTFIX 18X1,5-G GY
Normally In Stock
Code: 62456
PTFIX 18X1,5-G GY Phoenix 3002804 Distributor terminal block Push-in connection 450 V 17.5 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$6.01
Sale Price
$5.01
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

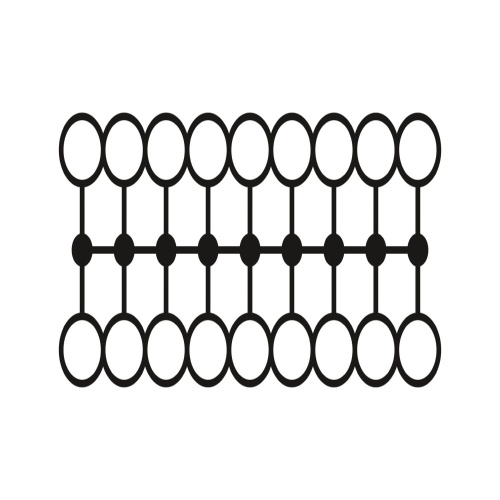

Phoenix Contact 3002804 The specified distribution block features a base terminal block with a nominal voltage rating of 450V and a maximum current capacity of 17.5A. It offers 18 connection points utilizing a push-in connection method, while the cross-sectional area ranges between 0.14mm² to 2.5mm². The mounting type is adhesive and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Width
37.4 mm
Terminal Block Number of Connections
18
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space-saving potential distribution, thanks to compact micro potential distributors
Clear arrangement thanks to marking of all terminal points
Convenient test options, thanks to test openings at every terminal point
Flexible use, thanks to DIN rail and direct mounting
Space-saving, thanks to the compact design
Downloads
Phoenix 3002804 CAD data International.dxfPhoenix 3002804 CAD data International.pdfPhoenix 3002804 CAD data International.stpPhoenix 3002804 Manufacturers declaration International.pdfPhoenix 3002804 Package Slip International.pdfPhoenix 3002804 Safety note English.pdfPhoenix 3002804 Tender Text English.zip
