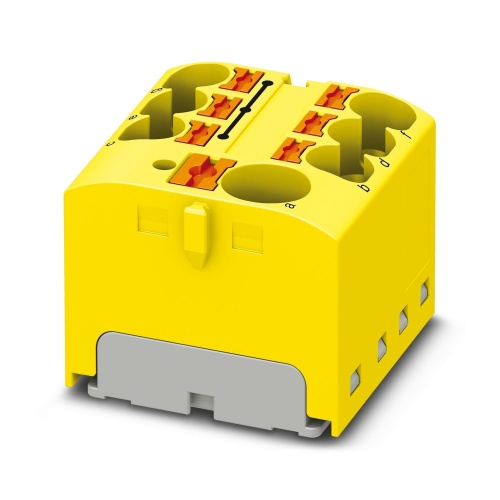

Phoenix Contact 3273994 Distribution block PTFIX 10/6X4-G YE
Normally In Stock
Code: 62430
PTFIX 10/6X4-G YE Phoenix 3273994 Distributor terminal block Push-in connection 450 V 32 Amp yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$6.43
Sale Price
$5.36
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273994 The distribution block features a nominal voltage of 450 V and a nominal current rating of 41 A, allowing for 7 connections to be made using a push-in connection method. The load contact has rated cross-sectional areas ranging from 0.2 mm² to 6 mm², while the line contact can handle ratings of 10 mm² with cross-sections between 0.5 mm² and 10 mm². Mounting is via adhesive and has a bright yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
27.9 mm
Terminal Block Component Color
Yellow
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Fast installation with ready-to-connect distribution blocks and device terminal blocks
Significant space savings due to the minimal size
Flexible mounting options with various mounting adapters and special adhesive versions
Color-coded assignment of conductors and terminal points for intuitive and safe installation
Standardized accessories – the blocks can be extended, tested, and marked with the CLIPLINE complete accessories without any loss of pitch
Downloads
Phoenix 3273994 CAD data International.dxfPhoenix 3273994 CAD data International.pdfPhoenix 3273994 CAD data International.stpPhoenix 3273994 Manufacturers declaration International-2.pdfPhoenix 3273994 Manufacturers declaration International.pdfPhoenix 3273994 Package Slip International.pdfPhoenix 3273994 Safety note English.pdfPhoenix 3273994 Tender Text English.zip
