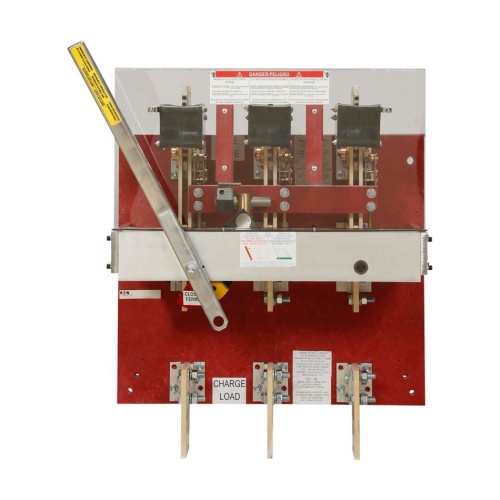

Eaton QA2533N480K7 Pringle Bolted Pressure Switch - 2500 Amp, NEMA 1/3R/4/12, Three Pole, 480 VAC, Three Wire
Normally In Stock
Code: 624130
Eaton QA2533N480K7 Pringle Bolted Pressure Switch - 2500 Amp, NEMA 1/3R/4/12, Three Pole, 480 VAC, Three Wire
Condition: New
Usually ships Same Day or Next Day$12048.25
Sale Price
$10040.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton QA2533N480K7 - pringle bolted pressure switch, Interlock, Manual bolted pressure contact switch, 2500A, 2NO-2NC, Non-fusible, 480V, NEMA 1/3R/4/12, Three-pole, Three-wire
Specifications
Poles
Three Pole
Enclosure NEMA Rating
NEMA 3R
Enclosure NEMA Rating
NEMA 1
Enclosure NEMA Rating
NEMA 12
Enclosure NEMA Rating
NEMA 4
Component
Non-Fusible Disconnect Switch
Manufacturer
Eaton
Enclosure Disconnect Type
Pringle Bolted Pressure Switch
Disconnect Enclosure Height
18.5 In
Disconnect Enclosure Depth
14.5 In
Disconnect Enclosure Width
3.07 In
Voltage
480 VAC
Current
800 Amp
Features
Provides current conducting efficiency equivalent to that of a bolted bus bar
Ensures long-term switch reliability with its non-magnetic switch bolting mechanism
Includes a higher force and distance ratio with its paired washer spring design, which makes it easier to operate the mechanism
Switches have a short circuit rating of 200kAIC when protected by Class L fuses
Suitable for use in UL 891 switchboards
