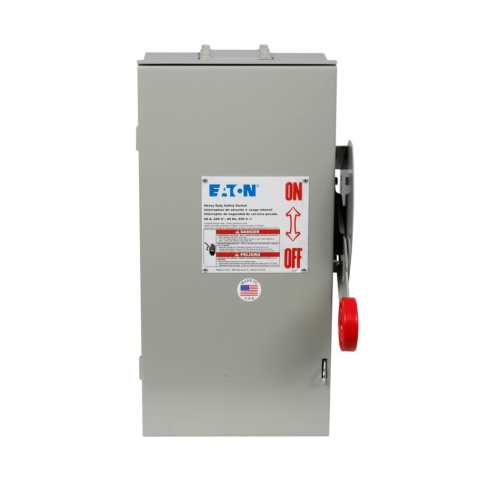

Eaton DH364URKV-00LL Single Throw Safety Switch - 200 Amp, NEMA 3R, Three Pole, Painted Galvanized Steel, 600 VAC, Three Wire
Normally In Stock
Code: 624100
Eaton DH364URKV-00LL Single Throw Safety Switch - 200 Amp, NEMA 3R, Three Pole, Painted Galvanized Steel, 600 VAC, Three Wire
Condition: New
Usually ships Same Day or Next Day$3558.16
Sale Price
$2965.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DH364URKV-00LL - Custom single-throw non-fused safety switch, Single-throw, 200A, NEMA 3R, Painted galvanized steel, Class H fuses, Non-fusible, Three-pole, Three-wire, K-Series, Enhanced visible blade, Line & load labels - Visible blades
Specifications
Poles
Three Pole
Enclosure Disconnect Type
Single Throw Safety Switch
Enclosure NEMA Rating
NEMA 3R
Component
Non-Fusible Disconnect Switch
Disconnect Enclosure Height
10 In
Manufacturer
Eaton
Disconnect Enclosure Width
9.5 In
Enclosure Composition
Painted Galvanized Steel
Voltage
600 VAC
Current
800 Amp
Disconnect Enclosure Depth
36.5 In
Features
Fusible and non-fusible switches are 100% load break and 100% load make rated
Suitable for service entrance applications unless otherwise noted
Mechanically interlocked cover to prevent easy access when the switch is in the ON position
Visible ON/OFF indication
Available in 30 A–1200 A ratings
NEMA 1, 3R, 12, 4 and 4X enclosures for robust environmental protection
Standard NEC 230.62 (C) and UL 98 compliant line side barrier
Features optional viewing window that incorporates visible blade components
