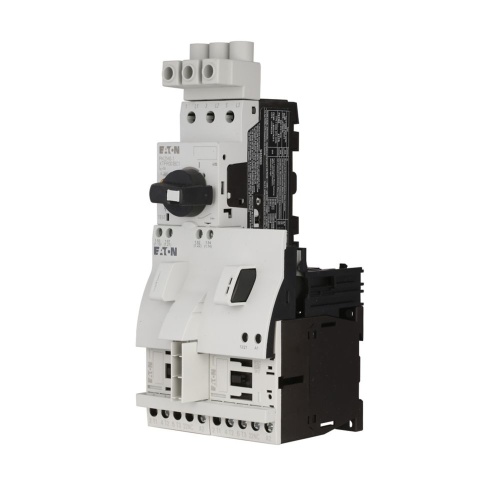

Eaton XTFR050DDWD Reversing Combination Motor Controller - 50 Amp, 48 VDC Coil
Normally In Stock
Code: 623633
Eaton XTFR050DDWD Reversing Combination Motor Controller - 50 Amp, 48 VDC Coil - Built in heater
Condition: New
Usually ships Same Day or Next Day$2334.65
Sale Price
$1945.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTFR050DDWD - XT IEC motor control UL 508 Type F - XT IEC FVR Combination Motor Controller,50 A,48 Vdc,1NO-1NC auxilary contact,Frame D,55 mm,16 to 63 A,Built in heater, Magnetic trip elements,Type 2 Coordination,Frame Size D, 55 mm, 40 to 65 A
Specifications
Starter Coil Voltage
48 VDC
Starter Amperage
50 Amp
Starter Reversing Capability
Reversing
Manufacturer
Eaton
Component
Combination Motor Controller
Features
ON/OFF rotary handle with lockout provision
Visible trip indication
Test trip function
Motor applications from 0.10A to 65A
Class 10 overload protection
Built-in heater and magnetic trip elements to protect the motor
Phase loss sensitivity
Type 2 coordination
Ambient compensated up to 55°C [140°F]
Control inputs located at front of starter for easy access and wiring
Wide range of coils
DIN rail mount— XTSC…BB_
Mounting plates— XTSC…BC_, XTSC…D motor controllers
Adjustment dial for setting motor FLA
Short-circuit trip at 14 times the maximum setting of the FLA adjustment dial
UL 508 Type F and Type E CMC high fault short-circuit ratings
1NO-1NC auxiliary contact as standard on manual motor controller and combination motor controller
