Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Downloads
Hoffman PTHS242430XA 2D DXF CAD.zip
Hoffman PTHS242430XA 3D STEP CAD.zip
Hoffman PTHS242430XA Declaration of Compliance.pdf

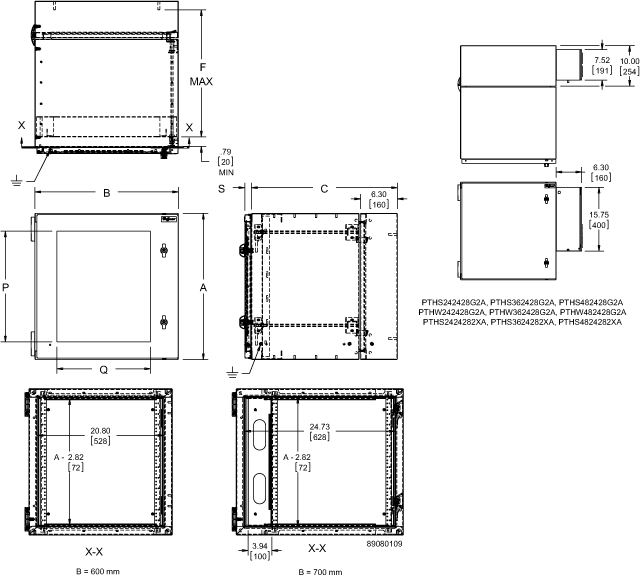

Hoffman PTHS242430XA Dimension Drawing.gif
Hoffman PTHS242430XA EU Declaration of Conformity.pdf
Hoffman PTHS242430XA Instruction Manual.pdf
Hoffman PTHS242430XA Spec Sheet.pdf
Hoffman PTHS242430XA UL Certification.pdf

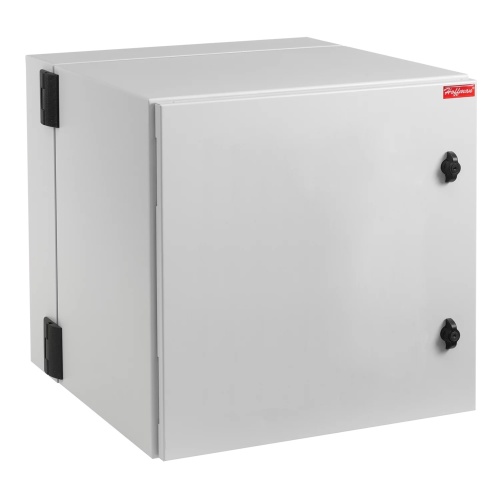

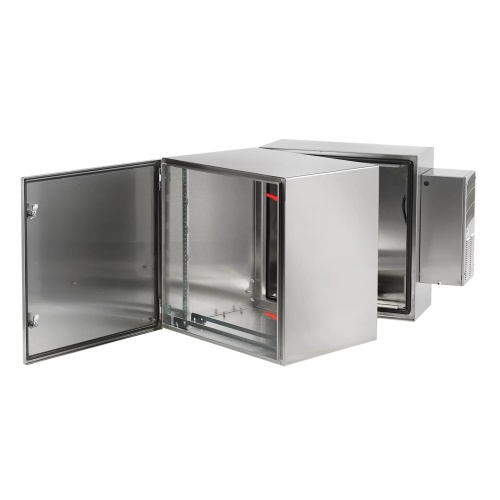

Hoffman PTHS242430XA 25.0"x24.0"x32.0" AccessPlus ProTek Double-Hinged Network Cabinet
Hoffman PTHS242430XA 25.0"x24.0"x32.0" Wall Mount AccessPlus ProTek Double-Hinged Network Cabinet (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $14310.40
Sale Price:
$10848.38
Hoffman PTHS242430XA 25.0"x24.0"x32.0" AccessPlus ProTek Double-Hinged Network Cabinet ProTek Double-Hinged cabinets are an excellent, off-the-shelf choice for mounting 19-in. rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-in. rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants.
| Specifications | |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Latch Type | Quarter Turn |
| Enclosure Interior Color | Gray |
| Enclosure Lock Type | Keylocking |
| Enclosure Depth | 32" |
| Enclosure Composition | Stainless Steel |
| Rack Units | 12 |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Manufacturer | Hoffman |
| Line | ProTek |
| Enclosure Height | 25" |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Width | 24" |
| Component | Network Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure Type | ProTek Double-Hinged Cabinet |
