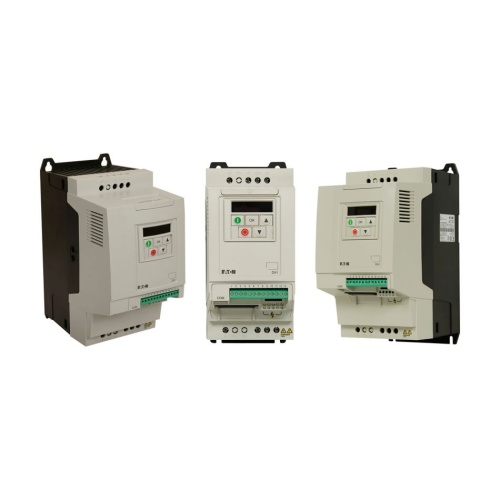

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Eaton DA1-32018FB-B6SC - DA1 Series VFD, 240 Volt Three Phase, 5 HP, 18 Amp, IP66, NEMA 4X
Normally In Stock
Code: 618004
Eaton DA1-32018FB-B6SC - DA-1 Drive VF drive IP66 with disconnect NEMA 4X OLED display 2 outputs 5 inputs 240V Internal brake chopper Three-phase mains connection/three-phase motor connection RS-485 FR2 18A Internal RFI filter 5 Hp - 10.12" x 9.42" x 7.1" (HxWxD)
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$4025.80
Sale Price
$3354.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DA1-32018FB-B6SC - Eaton’s PowerXL® DA1 variable frequency drives represent a cutting-edge solution tailored for modern machinery applications, especially for demanding OEM needs. Engineered with a high-performance processor and essential safety features like safe torque off, these drives offer versatility with support for multiple fieldbus protocols including SmartWire-DT. Sensorless vector control and compatibility with permanent magnet motors enhance performance, while available models cater to different voltage and horsepower requirements. Compact and rugged, these drives boast industry-leading efficiency, integrated EMC filters for network compatibility, and a range of communication options such as EtherNet/IP, DeviceNet, and more. With features like 200% torque at zero speed, removable I/O terminal blocks, and a robust design for permanent magnet motors, the DA1 drives offer a comprehensive and reliable solution for diverse industrial applications.
Specifications
VFD Horsepower Output
5 HP
VFD Amperage Output
18 Amp
VFD Input Voltage
240 Volt Three Phase
VFD Output Voltage
240 Volt Three Phase
VFD NEMA-IP Rating
NEMA 4X
VFD NEMA-IP Rating
IP66
Manufacturer
Eaton
VFD Frame Type
FR2
VFD Line
DA1
VFD Brake
With Brake Chopper
Features
High overload capability: 150% for 60 sec., 200% for 4 sec.
Integrated Modbus RTU and CANopen
EMC filter, integrated
Braking transistor, integrated
Control method: V/F control, sensorless vector control, vector control with encoder
Various I/O expansions
Optional field bus connections
Safe Torque Off (STO)
Optional high-resolution OLED display
Can be used to drive high-efficiency PM motors
International standards (CE, UL, cUL, c-Tick, RoHS, Gost-R, UkrSEPRO).
