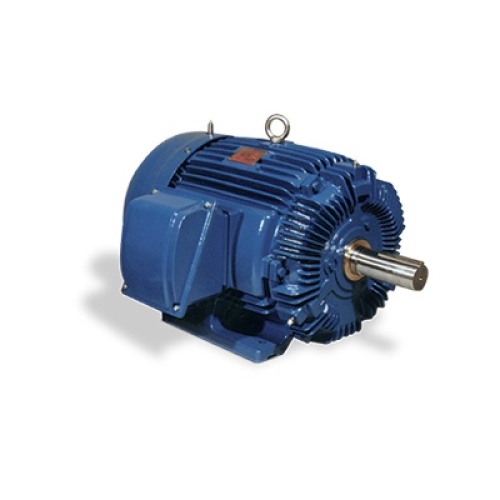

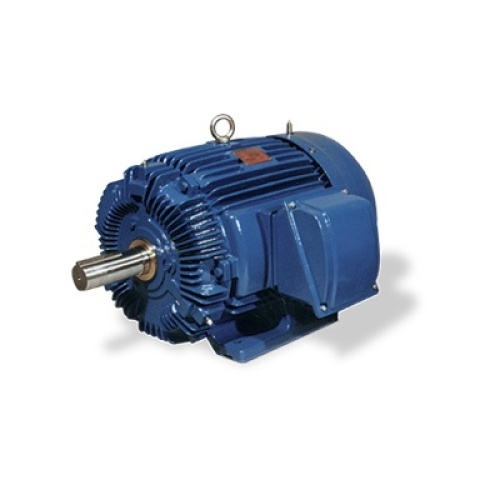

TECO HB7/54C Motor - 7.5 HP, TEFC, 460 VAC, 1800 RPM, 213TC Frame
Normally In Stock
Code: 612308
TECO HB7/54C Motor - 7.5 HP, TEFC, 460 VAC, 1800 RPM, 213TC Frame
Condition: New
Usually ships Same Day or Next Day$1940.66
Sale Price
$1617.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO HB7/54C - MAX E2/841 NEMA PREMIUM SEVERE DUTY TEFC, C-FACE
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
7.5 HP
Motor Frame Model
213TC
Motor RPM's
1800 RPM
Motor Voltage
460 VAC
Manufacturer
TECO
Features
Output Range: 1 – 300 HP
Speed Options: 3600, 1800, and 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP55)
IP56 for 280TS frames and above
Voltage: 460V Only
Frequency: Three-phase, 60 Hz, 1.15 service factor (continuous)
50 Hz, 1.0 service factor (continuous)
Insulation Class: F
Temperature Rise: Class B
Torque Design: NEMA Design B torques as a minimum
various ratings also meet Design C
Frame Construction: Cast iron frame and end brackets
Grounding Terminal: Inside main conduit box
Conduit Box: Oversized main conduit box rotatable in 90-degree increments – F1 mounted
Ambient Temperature: Designed for 40°C
Altitude: Designed for 3300 ft. elevation
Rotation: Bi-directional rotation
except 2-pole "Hybrid" and F# 5000 and larger ratings are counter-clockwise facing the drive end
Shaft Material: 1045 carbon steel
Rotor Construction: Aluminum die-cast squirrel cage rotor construction for F# 140T - 449T
copper/copper alloy rotor construction for F# 5000 and larger
Paint System: Phenolic rust-proof base plus polyurethane top coat
Paint Color: Light gray - Munsell N5.0
Bearings: Double shielded bearings pre-packed with MULTEMP SRL for F# 140T - 280T (non-regreasable)
Bearing Caps: Cast iron bearing caps on 320T frame and above
Seals: Labyrinth metal flinger seals on 440T and larger frames
gamma (axial face) seals on 140T to 400T frames
Drain Plugs: In both end brackets
Breather Drains: Threaded breather drains included for horizontal mounting
Nameplate: Stainless steel nameplate with dual-column layout for dual frequency ratings
Fan Cover: Rolled steel fan cover
Grounding Terminal: Inside conduit box with additional grounding provisions on large frames
Conduit Box: Oversized and rotatable in 90-degree increments
Mounting: Designed for continuous duty and harsh environments
