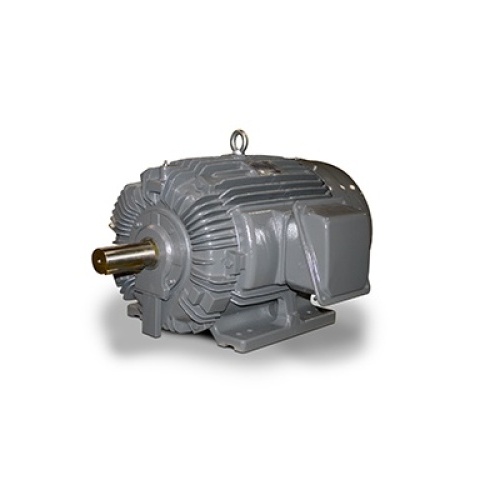

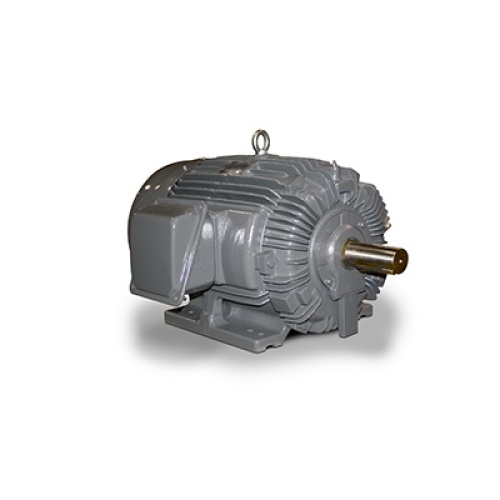

TECO NP2004 Motor - 200 HP, TEFC, 460 VAC, 1800 RPM, 445/447T Frame
Normally In Stock
Code: 611160
TECO NP2004 Motor - 200 HP, TEFC, 460 VAC, 1800 RPM, 445/447T Frame
Condition: New
Usually ships Same Day or Next Day$15753.26
Sale Price
$13127.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO NP2004 - MAX-PE NEMA PREM EFF SEVERE. TEFC INVERTER DUTY
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
200 HP
Motor RPM's
1800 RPM
Motor Voltage
460 VAC
Manufacturer
TECO
Motor Frame Model
445/447T
Features
Output Range: 1 – 200 HP
Speed: 3600, 1800 & 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP54)
Voltage: 230/460V (Usable on 208V)
150HP and Larger is 460V Only
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques as a Minimum
Various Ratings also Meet Design C
Cast Iron Frame and End Brackets
Rolled Steel Fan Cover and Main Conduit Box
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted
Designed for 40°C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Dark Gray – Munsell 7.5B 3.5/0.5
Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T – 280T (Non-regreasable)
High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM for F# 280TS and Larger
Automatic Grease Discharge Fittings on Regreasable Models
Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
Cast Iron Inner and Outer Bearing Caps for F# 280TS and Larger
Stainless Steel Nameplate
New Dual Column Design Nameplate as Standard (60/50 Hz)
Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
9 Leads for 5 HP and Smaller
12 Leads for 7.5 HP and Larger
Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
