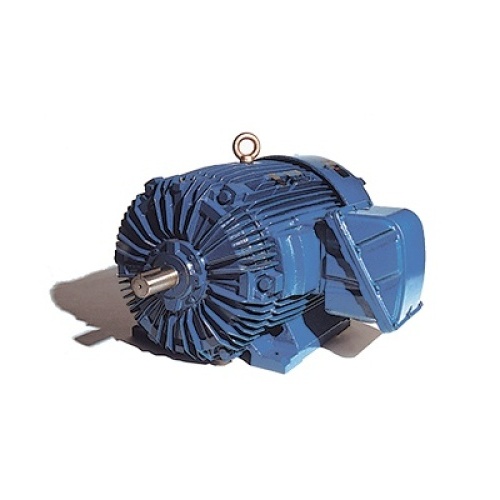

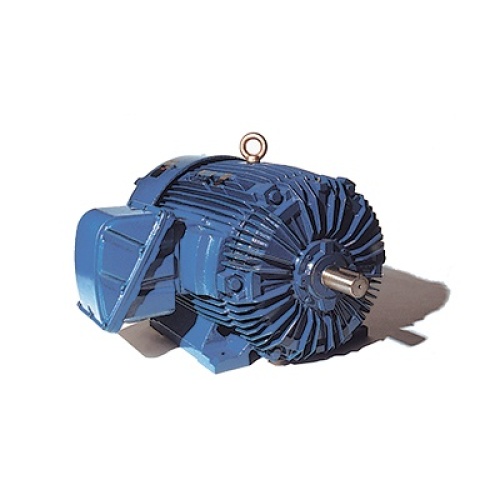

TECO XP1502 Motor - 150 HP, TEFC, 460 VAC, 3600 RPM, 445TS Frame
Normally In Stock
Code: 611159
TECO XP1502 Motor - 150 HP, TEFC, 460 VAC, 3600 RPM, 445TS Frame
Condition: New
Usually ships Same Day or Next Day$20398.12
Sale Price
$16998.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO XP1502 - TEXP PREMIUM EFFICIENCY EXPLOSION PROOF
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
150 HP
Motor Frame Model
445TS
Motor RPM's
3600 RPM
Motor Voltage
460 VAC
Manufacturer
TECO
Features
Output Range: 1 - 400 HP
Speed: 3600, 1800, 1200 & 900 RPM
Enclosure: Totally Enclosed Fan Cooled - Explosion Proof (IP55)
Voltage: 230/460V (Usable on 208V)
150HP and Larger is 460V Only
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Class I, Div. 1, Group C & D and Class II, Groups E, F and G - Temp Code T2D/T3B Up to and Including F# 256T
Class I, Div. 1, Group D and Class II, Groups E, F and G - Temp Code T2D/T3B for F# 284T and Larger
UL File: E84757
CSA File: #64671
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Standard with Klixon 9700K Temperature Limiting Switch, 1 per Phase
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
Dual Drilled Back Feet on 447/9 and 5007/9 Frames
Designed for 40˚C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
