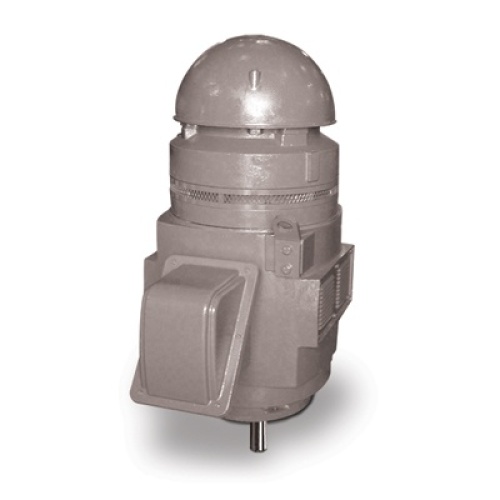

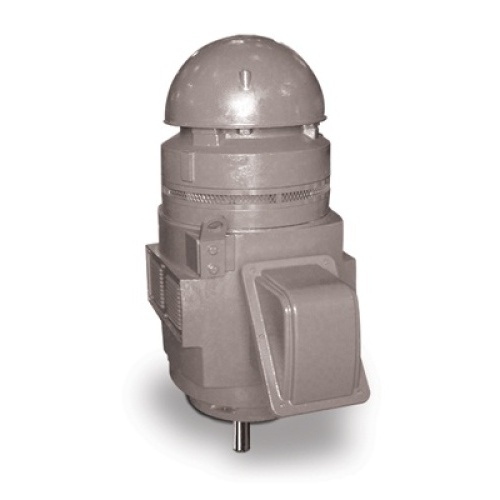

TECO VSP2504 Motor - 250 HP, WPI, 460 VAC, 1800 RPM, 447VP20 Frame
Normally In Stock
Code: 611157
TECO VSP2504 Motor - 250 HP, WPI, 460 VAC, 1800 RPM, 447VP20 Frame
Condition: New
Usually ships Same Day or Next Day$32708.14
Sale Price
$27256.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO VSP2504 - VERTICAL SOLID SHAF T WPI, HIGH THRUST
Specifications
Motor Horsepower
250 HP
Motor RPM's
1800 RPM
Motor Voltage
460 VAC
Manufacturer
TECO
Motor Enclosure Type
Weather Protected Type I
Motor Frame Model
447VP20
Features
Output Range: 15 - 800 HP
Speed: 1800 & 1200 RPM
Enclosure: Weather Protected Type I (WPI)
Voltage: 230/460V (Usable on 208V)
150HP and Larger is 460V Only
Three Phase, 60 Hz, 1.15 Service Factor (Continuous on Sine Wave Power)
Inverter Duty (PWM) per NEMA® MG-1 Part 31 at 1.0 Service Factor
New Dual Column (60/50 Hz) Design Nameplate as Standard
50 Hz Data 190/380V at 1.0 S.F.
Standard Features: Ball Type NRR, Drip/Splash Cover, Space Heaters (120V)
5000 Frames and Above also include Mounting Provisions for bearing RTD's and Insulated Bearing Housing
Class F Insulation with Phenolic Alkyd Resin Varnish
Class B Temperature Rise
NEMA Design B Torques
Oversized Main Conduit Box Rotatable in 90 Degree Increments - Fully Gasketed with NPT Threaded Entrance
Cast Iron Conduit Box for F#449VP and Below
Steel Plate Conduit Box for F#5000
Designed for 40˚C Ambient Temperature
Designed for 3300 ft. Elevation
Counterclockwise (CCW) Rotation
Viewed from Top
Cast Iron Frame & End Brackets
1045 Solid Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction for F#449VP and Below
Squirrel Cage Copper or Copper Alloy Bar Rotor Construction for F#5000
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color for AMRCED (MAX-VSP™): Blue - Munsell 5PB 3/8
Guide Bearings: 213VP - 286VP frames are Double Shielded
Guide Bearings: 324VP - 5810 frames are Re-Greasable with Mobil Polyrex™ EM
Thrust Bearings: 213VP - 286VP frames are Re-Greasable Angular Contact with Mobil Polyrex™ EM
