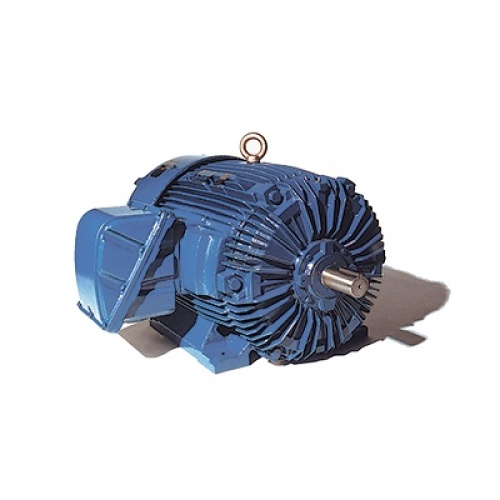

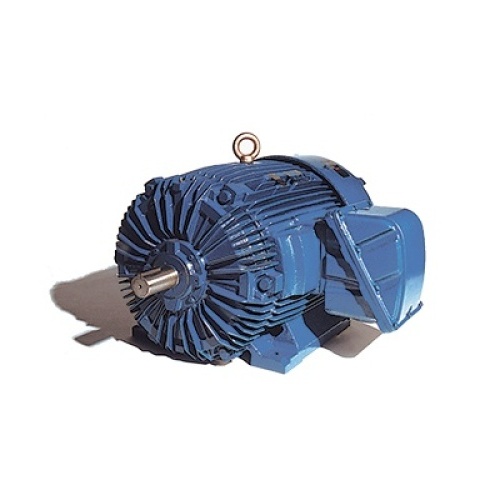

TECO XP12545 Motor - 125 HP, TEXP, 575 VAC, 1800 RPM, 444T Frame
Normally In Stock
Code: 611148
TECO XP12545 Motor - 125 HP, TEXP, 575 VAC, 1800 RPM, 444T Frame
Condition: New
Usually ships Same Day or Next Day$54388.03
Sale Price
$45323.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO XP12545 - TEXP PREMIUM EFFICIENCY EXPLOS
Specifications
Motor Frame Model
444T
Motor Horsepower
125 HP
Motor RPM's
1800 RPM
Motor Enclosure Type
Totally Enclosed Explosion-Proof
Manufacturer
TECO
Motor Voltage
575 VAC
Features
Output Range: 1 - 400 HP
Speed: 3600, 1800, 1200 & 900 RPM
Enclosure: Totally Enclosed Fan Cooled - Explosion Proof (IP55)
Voltage: 230/460V (Usable on 208V)
150HP and Larger is 460V Only
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Class I, Div. 1, Group C & D and Class II, Groups E, F and G - Temp Code T2D/T3B Up to and Including F# 256T
Class I, Div. 1, Group D and Class II, Groups E, F and G - Temp Code T2D/T3B for F# 284T and Larger
UL File: E84757
CSA File: #64671
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Standard with Klixon 9700K Temperature Limiting Switch, 1 per Phase
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
Dual Drilled Back Feet on 447/9 and 5007/9 Frames
Designed for 40˚C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
