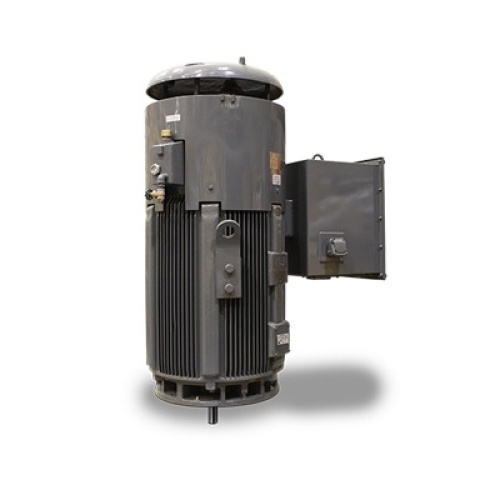

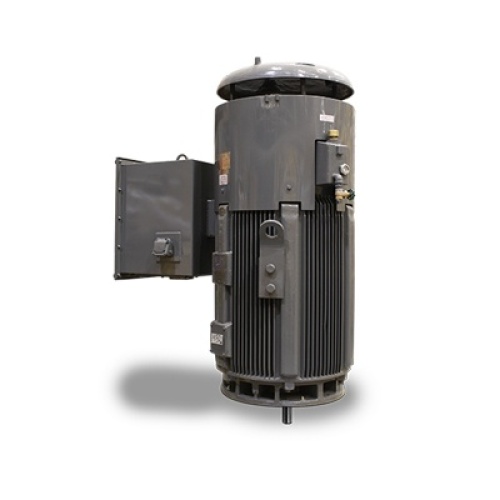

TECO VSTP1006 Motor - 100 HP, TEFC, 460 VAC, 1200 RPM, 444VP Frame
Normally In Stock
Code: 611146
TECO VSTP1006 Motor - 100 HP, TEFC, 460 VAC, 1200 RPM, 444VP Frame
Condition: New
Usually ships Same Day or Next Day$30453.67
Sale Price
$25378.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO VSTP1006 - TEFC VERTICAL SOLID HIGH THRUST WITH "P" BASE
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
100 HP
Motor RPM's
1200 RPM
Motor Voltage
460 VAC
Manufacturer
TECO
Motor Frame Model
444VP
Features
Output Range: 15 - 800 HP
Speed: 1800 & 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP55)
Voltage: 230/460V (Usable on 208V)
150HP and Larger is 460V Only
Frequency: 60 Hz
Service Factor: 1.15 (Continuous on Sine Wave Power)
Inverter Duty: (PWM) per NEMA® MG-1 Part 31 at 1.0 Service Factor
New Dual Column (60/50 Hz) Design Nameplate as Standard
50 Hz Data 190/380V at 1.0 S.F.
Standard Features: Ball Type NRR, Drip/Splash Cover, Space Heaters (120V)
5000 Frames and Above also include Mounting Provisions for bearing RTD's and Insulated Bearing Housing
Class F Insulation with Phenolic Alkyd Resin Varnish
Class B Temperature Rise
NEMA Design B Torques
Oversized Main Conduit Box Rotatable in 90 Degree Increments - Fully Gasketed with NPT Threaded Entrance
Cast Iron Conduit Box for F#449VP and Below
Steel Plate Conduit Box for F#5000
Designed for 40˚C Ambient Temperature
Designed for 3300 ft. Elevation
Counterclockwise (CCW) Rotation
Viewed from Top
Cast Iron Frame & End Brackets
1045 Solid Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction for F#449VP and Below
Squirrel Cage Copper or Copper Alloy Bar Rotor Construction for F#5000
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color for AEEHED (MAX-VSP™): Blue - Munsell 5PB 3/8
Guide Bearings: 213VP - 286VP frames are Double Shielded
Guide Bearings: 324VP - 5810 frames are Re-Greasable with Mobil Polyrex™ EM
Thrust Bearings: 213VP - 286VP frames are Re-Greasable Angular Contact with Mobil Polyrex™ EM
