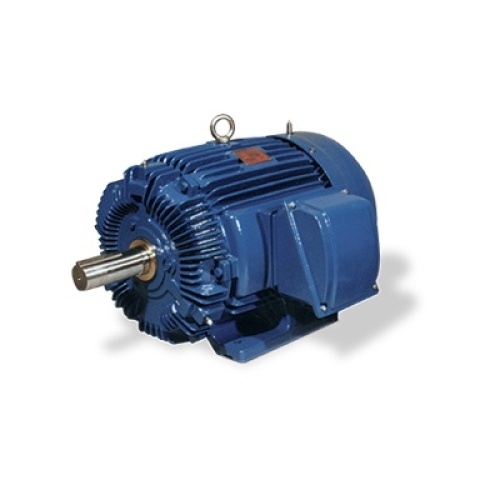

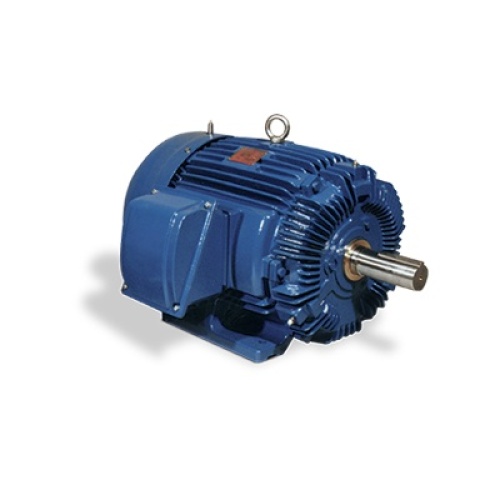

TECO HB15045 Motor - 150 HP, TEFC, 575 VAC, 1800 RPM, 445T Frame
Normally In Stock
Code: 611145
TECO HB15045 Motor - 150 HP, TEFC, 575 VAC, 1800 RPM, 445T Frame
Condition: New
Usually ships Same Day or Next Day$55434.08
Sale Price
$46195.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO HB15045 - MAX E2/841 NEMA PREM EFF SEVERE
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Frame Model
445T
Motor Horsepower
150 HP
Motor RPM's
1800 RPM
Manufacturer
TECO
Motor Voltage
575 VAC
Features
Output Range: 1 – 300 HP
Speed Options: 3600, 1800, and 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP55)
IP56 for 280TS frames and above
Voltage: 460V Only
Frequency: Three-phase, 60 Hz, 1.15 service factor (continuous)
50 Hz, 1.0 service factor (continuous)
Insulation Class: F
Temperature Rise: Class B
Torque Design: NEMA Design B torques as a minimum
various ratings also meet Design C
Frame Construction: Cast iron frame and end brackets
Grounding Terminal: Inside main conduit box
Conduit Box: Oversized main conduit box rotatable in 90-degree increments – F1 mounted
Ambient Temperature: Designed for 40°C
Altitude: Designed for 3300 ft. elevation
Rotation: Bi-directional rotation
except 2-pole "Hybrid" and F# 5000 and larger ratings are counter-clockwise facing the drive end
Shaft Material: 1045 carbon steel
Rotor Construction: Aluminum die-cast squirrel cage rotor construction for F# 140T - 449T
copper/copper alloy rotor construction for F# 5000 and larger
Paint System: Phenolic rust-proof base plus polyurethane top coat
Paint Color: Light gray - Munsell N5.0
Bearings: Double shielded bearings pre-packed with MULTEMP SRL for F# 140T - 280T (non-regreasable)
Bearing Caps: Cast iron bearing caps on 320T frame and above
Seals: Labyrinth metal flinger seals on 440T and larger frames
gamma (axial face) seals on 140T to 400T frames
Drain Plugs: In both end brackets
Breather Drains: Threaded breather drains included for horizontal mounting
Nameplate: Stainless steel nameplate with dual-column layout for dual frequency ratings
Fan Cover: Rolled steel fan cover
Grounding Terminal: Inside conduit box with additional grounding provisions on large frames
Conduit Box: Oversized and rotatable in 90-degree increments
Mounting: Designed for continuous duty and harsh environments
