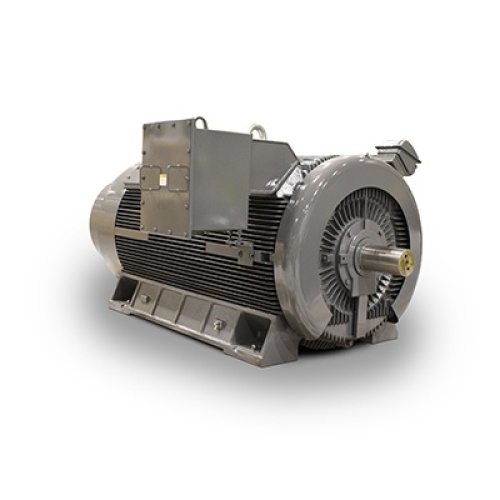

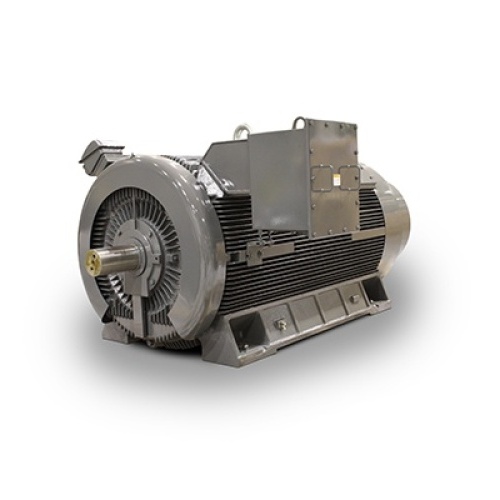

TECO KG1254 Motor - 125 HP, TEFC, 2300/4160 VAC, 1800 RPM, 444/5T Frame
Normally In Stock
Code: 611143
TECO KG1254 Motor - 125 HP, TEFC, 2300/4160 VAC, 1800 RPM, 444/5T Frame
Condition: New
Usually ships Same Day or Next Day$30262.72
Sale Price
$25218.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO KG1254 - MEDIUM VOLTAGE NEMA PREMIUM EFF TEFC
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
125 HP
Motor RPM's
1800 RPM
Manufacturer
TECO
Motor Voltage
2300/4160 VAC
Motor Frame Model
444/5T
Features
Output Range: 100 – 2000 HP
Speed: 3600, 1800, 1200 & 900 RPM
Enclosure: Totally Enclosed Fan Cooled (IP55)
Voltage: 2300/4160V
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
CSA Certified for Class I, Div. 2, for 5000 Frames and above
CSA Certified for Class I, Div. 2, Groups B, C, and D, for 444 Frames and above, Code T3
Standard Features: 100 Ohm Platinum Stator RTD's (2/Phase), Space Heaters (120V)
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Oversized Main Conduit Box Rotatable in 90 Degree Increments Fully Gasketed with NPT Threaded Entrance – F1 Mounted
Cast Iron Terminal Box on 444T – 449T Frames
Steel Plate Terminal Box on 5000 Frames and Above
Designed for 40˚C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation for all 444T – 449T Frames and for 1800 – 900 RPM (4 – 8 Pole) 5007 – 6808 Frame Motors
5007 – 6808 Frame 3600 RPM (2 Pole) Motors have Counter-Clockwise (CCW) Rotation facing the Drive End
Cast Iron Frame and End Brackets
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction on 444T – 449T Frames
Squirrel Cage Copper or Copper Alloy Bar Rotor Construction for 5007 – 6808 Frames
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Dark Gray – Munsell 7.5B 3.5/0.5
High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM
Labyrinth Type Metal Flinger on Both Ends
Cast Iron Inner and Outer Bearing Caps
Grounding Terminal Inside Main Box and on Motor Foot
Stainless Steel Nameplate
6 Leads, with Solderless Lug Terminals
Motors are CSA Approved
Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
