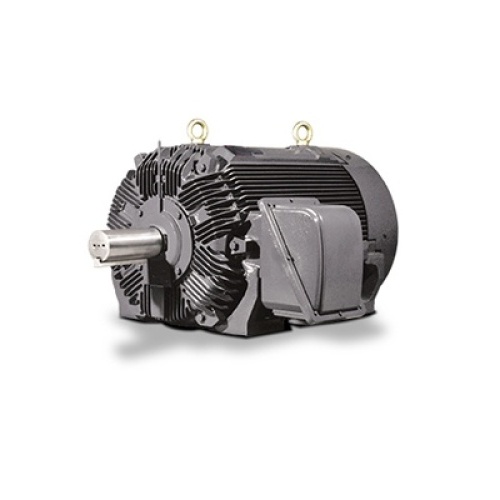

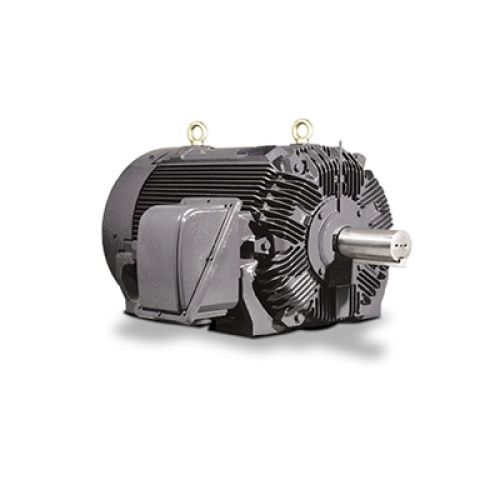

TECO CDP1256R Motor - 125 HP, TEFC, 230/460 VAC, 1200 RPM, 445T Frame
Normally In Stock
Code: 611142
TECO CDP1256R Motor - 125 HP, TEFC, 230/460 VAC, 1200 RPM, 445T Frame
Condition: New
Usually ships Same Day or Next Day$19689.25
Sale Price
$16407.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO CDP1256R - MAX-HT HI TORQUE CRUSHER DUTY DESIGN C
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Frame Model
445T
Motor Horsepower
125 HP
Motor RPM's
1200 RPM
Manufacturer
TECO
Motor Voltage
230/460 VAC
Features
Output range: 20–600 HP
Available speeds: 1800, 1200, and 900 RPM
Totally Enclosed Fan Cooled (TEFC) enclosure, IP55 rating
Voltage: 230/460 V (usable on 208 V)
150 HP+ models available only in 460 V
Service factor: 1.15 (60 Hz, continuous), 1.0 (50 Hz, continuous)
Insulation system: Class F with Class B temperature rise
NEMA Design C with ≥200% starting torque and ≥250% breakdown torque
Cast iron frame, end brackets, and conduit box
Rolled steel fan cover
Grounding terminal inside conduit box with additional grounding provision on large frames
Oversized conduit box rotatable in 90° increments
Rated for 40 °C ambient temperature and up to 3,300 ft elevation
Bi-directional rotation
Shaft made from high-strength 4140 AISI steel
Aluminum die-cast squirrel-cage rotor
Phenolic rust-proof base
Polyurethane top coat
dark gray Munsell color
High-quality ball or roller bearings, regreasable
Bearings lubricated with Mobil Polyrex EM
Automatic grease fittings
Gamma (axial-face) seals on 140T–400T frames
Labyrinth metal flinger seals for 440T and larger
Cast-iron bearing caps for 320T frame and above
Stainless steel nameplate
Dual-column nameplate layout for dual-frequency ratings
CSA certified for Class I, Div. 2 (Groups B, C, D) and Class II, Div. 2 (Groups F, G) for applicable frames
Inverter-rated per NEMA MG‑1 Part 31 and 4.4.2
PWM-compatible
Inverter-duty speed range: 20:1 variable torque
10:1 constant torque (3:1 for 350 HP and up)
12 leads on motors up to 125 HP, 6 leads on motors 150 HP and above
Built-in PTC thermistors (140 °C), one per phase
Vertical shaft-down configurations include locknut and washer on non-drive end for 440T+
Drain plugs in both end brackets
Threaded breather drains included for horizontal use
Robust shaft construction and protection for industrial environments
