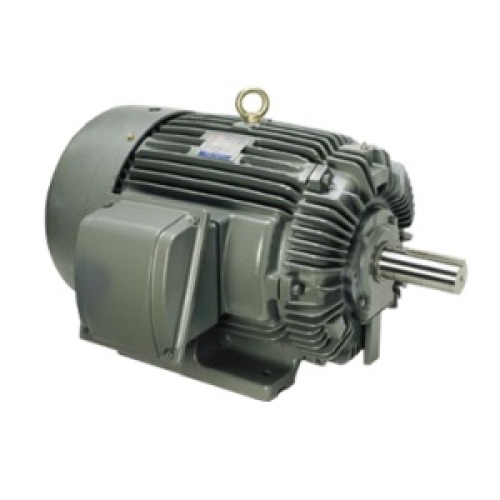

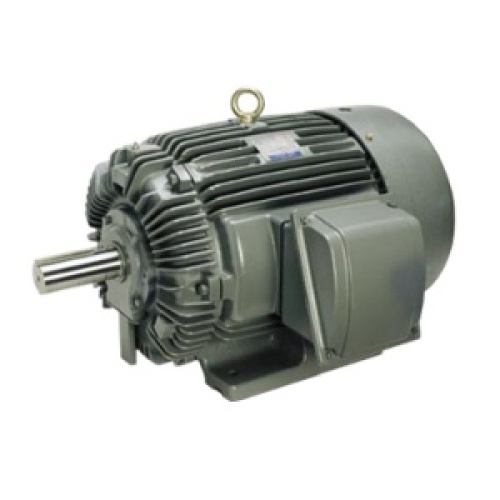

TECO EP15045R Motor - 150 HP, TEFC, 575 VAC, 1800 RPM, 444/445T Frame
Normally In Stock
Code: 611137
TECO EP15045R Motor - 150 HP, TEFC, 575 VAC, 1800 RPM, 444/445T Frame
Condition: New
Usually ships Same Day or Next Day$13190.74
Sale Price
$10992.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO EP15045R - MAX E1 NEMA PREM EFF SEVERE DUTY TEFC
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
150 HP
Motor RPM's
1800 RPM
Manufacturer
TECO
Motor Voltage
575 VAC
Motor Frame Model
444/445T
Features
Output range: 3/4 – 800 HP
Speed options: 3600, 1800, 1200, and 900 RPM
Enclosure: Totally Enclosed Fan Cooled (IP54 for 280 frames and below
IP55 for 280TS frames and above)
Voltage: 230/460 V (usable on 208 V)
150 HP and larger are 460 V only
Three-phase, 60 Hz, 1.15 service factor (continuous)
50 Hz, 1.0 service factor (continuous)
CSA certified for Class I, Division 2, Groups B, C, D – Temperature Code T3 minimum
CSA certified for Class II, Division 2, Groups F & G – Temperature Code T3 minimum (444T and above)
Class F insulation
Class B temperature rise
NEMA Design B torque as a minimum
some ratings meet Design C
Cast iron frame, end brackets, fan cover, and main conduit box
Grounding terminal inside main conduit box
Oversized main conduit box rotatable in 90-degree increments – F1 mounted
Designed for 40°C ambient temperature
Designed for elevations up to 3,300 ft
Applications include fans, blowers, compressors, pumps, mixers, crushers, and conveyors
NEMA Premium Efficiency compliant
Inverter rated per NEMA MG-1 Part 31 and Part 4.4.2 standards
PWM compatible
Inverter-duty speed range: 20:1 variable torque, 10:1 constant torque
Leads: 9 leads for motors up to 5 HP
12 leads for 7.5 to 125 HP
6 leads for 150 HP and above
Built-in PTC thermistors for thermal protection (140°C), one per phase
High-strength steel shaft
Aluminum die-cast squirrel cage rotor
Cast iron bearing caps on 320T frame and above
Labyrinth metal flinger seals on 440T and larger frames
Gamma (axial face) seals on 140T to 400T frames
Bearings: high-quality ball or roller bearings, regreasable with automatic grease fittings
Rated for bi-directional rotation
Drain plugs in both end brackets
Threaded breather drains included for horizontal mounting
Stainless steel nameplate with dual-column layout for dual frequency ratings
Rolled steel fan cover
Robust construction designed for industrial environments
Grounding terminal inside conduit box with additional grounding provisions on large frames
Oversized conduit box rotatable in 90° increments
Designed for continuous duty and harsh environments
