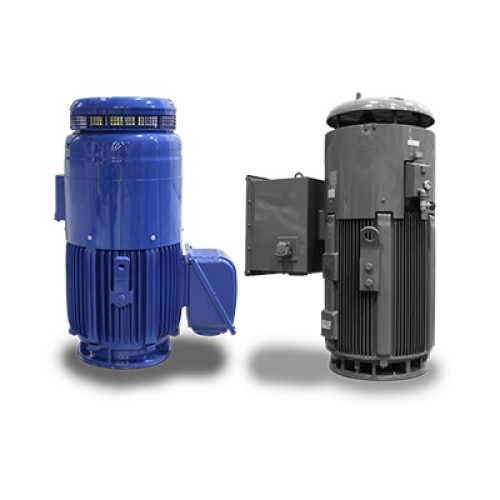

TECO VHTP1254 Motor - 125 HP, TEFC, 230/460 VAC, 1800 RPM, 444TP Frame
Normally In Stock
Code: 611131
TECO VHTP1254 Motor - 125 HP, TEFC, 230/460 VAC, 1800 RPM, 444TP Frame
Condition: New
Usually ships Same Day or Next Day$33068.83
Sale Price
$27557.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

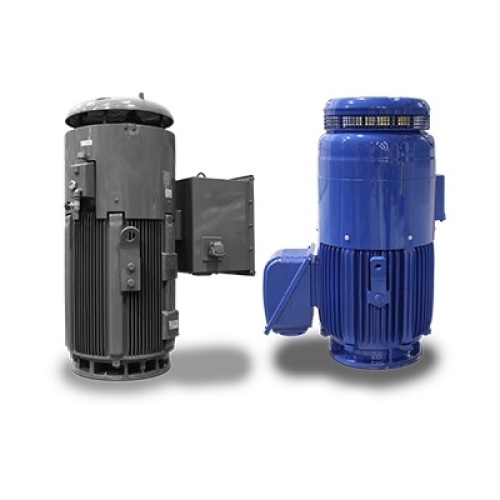

TECO VHTP1254 - TEFC VERTICAL HOLLOW HIGH THRUST WITH "P" BASE
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
125 HP
Motor RPM's
1800 RPM
Motor Frame Model
444TP
Manufacturer
TECO
Motor Voltage
230/460 VAC
Features
Output Range: 15 – 800 HP
Speed: 1800 & 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP55)
Voltage: 230/460 V (Usable on 208 V)
150 HP and larger is 460 V only
230/460 V Motors Suitable for Partial Winding Start (at 230 V only)
Three‑Phase, 60 Hz, 1.15 Service Factor (Continuous on Sine Wave Power)
CSA Certified for Class I, Division 2, Group B, C, D – Temp Code T3 Minimum
Inverter Duty (PWM) per NEMA MG‑1 Part 31 at 1.0 Service Factor
New Dual‑Column (60/50 Hz) Design Nameplate as Standard
50 Hz Data 190/380 V at 1.0 S.F.
Standard Features: Coupling with Gib Key, Non‑Sparking Ball Type NRR, Drip/Splash Cover, Space Heaters (120 V)
5000‑Frame and above also include Mounting Provisions for Bearing RTDs and Insulated Bearing Housing
Class F Insulation with Phenolic Alkyd Resin Varnish
Class B Temperature Rise
NEMA Design B Torques
Oversized Main Conduit Box Rotatable in 90° Increments – Fully Gasketed with NPT Threaded Entrance
Cast Iron Conduit Box for Frame 449TP and below
Steel Plate Conduit Box for Frame 5000
Designed for 40 °C Ambient Temperature
Designed for 3,300 ft Elevation
Counterclockwise (CCW) Rotation
Viewed from Top
Cast Iron Frame & End Brackets
1045 Hollow Carbon Steel Shaft
Aluminum Die‑Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Blue – Munsell 5PB 3/8
Guide Bearings:
Frames 254–286TP: Grease Pre‑packed Double Shielded (MULTEMP SRL)
Frames 324TP–5810P: Regreasable (Mobil Polyrex EM)
Thrust Bearings:
Frames 254–365TP: Regreasable Angular Contact (Mobil Polyrex EM)
Frames 404–449TP: Oil‑Lubricated Angular Contact
Frames 5000 & Above: Spherical Roller or Angular Contact
Oil Sight Glass for Frames 324TP and above
Oil Requirements: 300 SSU @ 100 °F
Grounding Terminal Inside Main Box
Stainless Steel Nameplate
12 Leads (PWS on 230 V) on Frames 213–405TP
6 Leads on Frames 444TP–449TP
5000‑Frame and above with Connection Studs
Inverter Duty: 4:1 Variable Torque with NRR
10:1 Constant Torque
20:1 Variable Torque without NRR when using VFD braking
