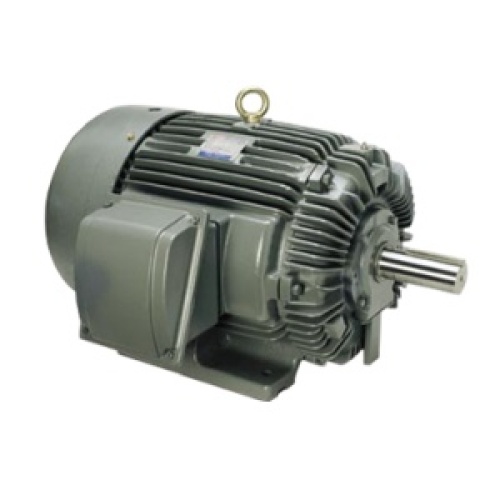

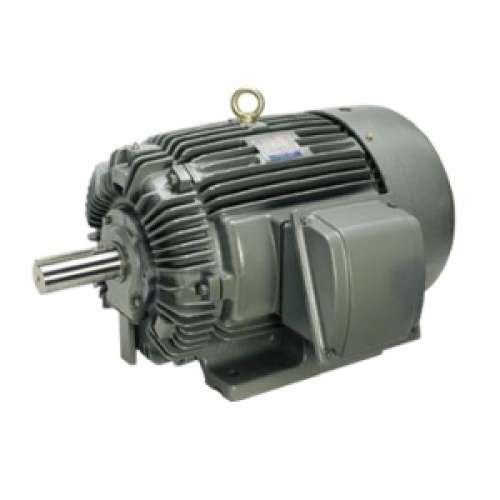

TECO EPF7004R Motor - 700 HP, TEFC, 460 VAC, 1800 RPM, 5009/10/11C Frame
Normally In Stock
Code: 610586
TECO EPF7004R Motor - 700 HP, TEFC, 460 VAC, 1800 RPM, 5009/10/11C Frame
Condition: New
Usually ships Same Day or Next Day$72406.22
Sale Price
$60338.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO EPF7004R - MAX E1 PREMIUM EFF SEVERE DUTY TEFC
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
700 HP
Motor RPM's
1800 RPM
Motor Voltage
460 VAC
Manufacturer
TECO
Motor Frame Model
5009/10/11C
Features
Output Range: 200-1000 HP
Speed: 3600, 1800, 1200 & 900 RPM
Enclosure: Totally Enclosed Fan Cooled (IP55)
Voltage: 460V 1
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
CSA Certified for Class I, Div. 2, Groups A, B, C, D - Temp Code T2D Minimum 6
CSA Certified for Class II, Div. 2, Groups F & G - Temp Code T3C Minimum 6
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Cast Iron Frame, End Brackets & Pressed Steel Fan Cover and Plate Main Conduit Box.
Oversized Fabricated Steel Main Conduit Box Rotatable in 90 Degree Increments Fully Gasketed with NPT Threaded Entrance - F1 Mounted, Field Convertible to F2 and F3
Oversized Main Conduit Box Rotatable in 90 Degree Increments
Designed for 40˚C Ambient Temperature 2
Designed for 3300 ft. Elevation 3
Bi-Directional Rotation
Except 2 Pole are Counter-Clockwise facing the DE
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction or Copper Bar Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Light Gray - Munsell N5.0
High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex TM EM
Automatic Grease Discharge Fittings
Metal Flinger on Both Ends
Cast Iron Inner and Outer Bearing Caps
Stainless Steel Nameplate
Dual Column Design Nameplate as Standard (60/50 Hz)
6 Leads
Motors are CSA Approved
Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 5009 Drilled also for 5007)
Pre-Formed Random Wound, Made of High Pulse Endurance Index Wire, CIV Tested to 2000V/0.1us
Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2 (4,5)
Inverter Duty Speed Range: 10:1 Variable Torque, 3:1 Constant Torque
2-Pole Motors 400 HP and Larger Standard Features: 100 Ohm Platinum Stator RTD's(2/Phase), Space Heaters(120V), and Insulated Non-Drive End Bearings
Catalog Numbers Ending in "R" Come Standard with Roller Bearings for Belted Applications.
Spotface ¼ -28UNF Tap x 12mm Deep on Top of Both End Brackets with VB300 Vibration Sensor
