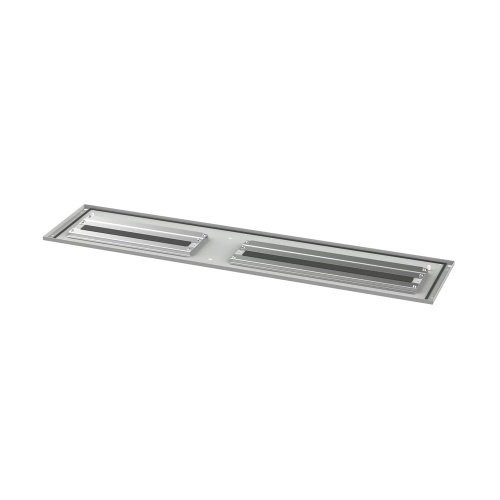

nVent Hoffman P2BGPD164G PROLINE G2 Disconnect Gland Plates
Normally In Stock
Code: 60584
nVent Hoffman P2BGPD164G 1600 mmx400 mm PROLINE G2 Disconnect Gland Plates
Condition: New
Usually ships Same Day or Next Day$577.86
Sale Price
$481.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2BGPD164G PROLINE G2 Disconnect Gland Plates PROLINE G2 Disconnect Components are used with PROLINE G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution for widths >1000 mm wide. These components are identical to the standard PROLINE G2 components (i.e. PROLINE G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).
Specifications
Component
Gland Plate
Sub Component
Disconnect Gland Plate
Line
PROLINE G2
Gland Plate Composition
Steel
Gland Plate Fits Cutout Size
1600 X 400 mm
Manufacturer
Hoffman
Features
Galvanized or painted versions
Sturdy, adjustable gland plates designed to bear the weight of a person
Number of plates varies with depth: 400 mm and 500 mm (3 plates), 600 mm (4 plates), 800 mm (6 plates), 1000 mm (8 plates)
Sealed to maintain NEMA Type 12 rating
Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
Solution for widths >1000 mm wide
Gland Plates are finished with paint over plated surfaces
Installation hardware included
Can be rotated 180 degrees for front or rear cable entry
Can be used without a base if casters, levelers or frame feet are installed
Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points
