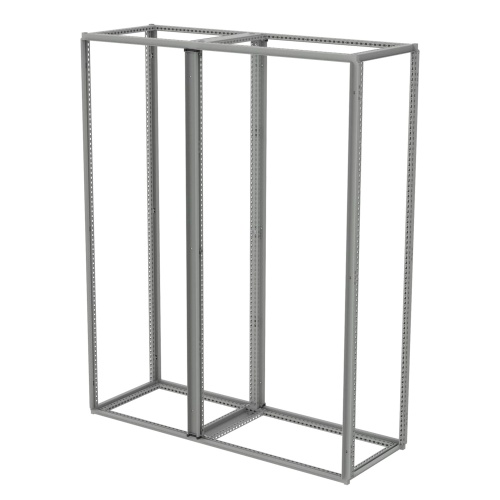

nVent Hoffman P2FD16126 Modular PROLINE G2 Disconnect Frames
Code: 59817
nVent Hoffman P2FD16126 63"x48"x24" Free Standing Modular Enclosure Solutions
Condition: New
Usually ships Same Day or Next Day$3989.45
Sale Price
$3324.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2FD16126 Modular PROLINE G2 Disconnect Frames PROLINE G2 Disconnect Frames can be used with PROLINE G2 Disconnect Doors and Disconnect components to configure a custom Disconnect Enclosure Solution from standard modular enclosure components.
Specifications
Frame Composition
Steel
Frame Enclosure Type
Free-Standing
Frame Enclosure Depth
24"
Frame Enclosure Depth mm
600 mm
Frame Number of Doors
2 Door
Frame Enclosure Height
63"
Frame Enclosure Height mm
1600 mm
Frame Enclosure Width
48"
Frame Enclosure Width mm
1200 mm
Component
Frame
Line
PROLINE G2
Manufacturer
Hoffman
Features
Includes combination removable center upright/verticals in both the front and rear of the enclosure, again with a 100-mm offset
RAL 7035 textured light-gray polyester powder paint finish
Similar in design and construction as other ProLine G2 frames, but incorporates a 100-mm offset due to the presence of a 200-mm mullion door in the disconnect door solution
Disconnect specific frame is required for any enclosure solution >1000mm in width, widths 1000mm or less utilize a standard single-bay frame
Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
