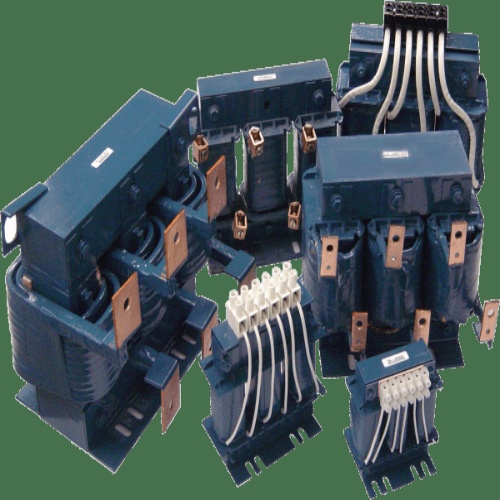

MTE RLW-002801 RLW Series Reactor - 240 Volt, 7.5-10 HP, 0.39mH, 28 Amp, Open
Normally In Stock
Code: 592864
MTE RLW-002801 RLW Series Reactor - 240 Volt, 7.5-10 HP, 0.39mH, 28 Amp, Open, 5.4 Watts Loss, 3% Impedance - 8.3" x 8.9" x 5.7" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$258.79
Sale Price
$215.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
MTE RLW-002801 - RLW Line/Load Reactors are a state-of–the-art solution for absorbing everyday power line disturbances that can damage or shut down variable frequency drives (VFDs) and other sensitive equipment. They work on both the line side and load side to give you an economical way to reduce nuisance tripping, reduce harmonic distortion and minimize long lead effects. Their epoxy impregnated design also reduces audible noise, and improves structural and moisture integrity.
Specifications
VFD Filter Enclosure
Open
VFD Filter Horsepower
7.5 HP
VFD Filter Horsepower
10 HP
VFD Filter Voltage
240 Volt
VFD Filter Impedance
3%
VFD Filter Protected Side
Line Side (In)
VFD Filter Protected Side
Load Side (Out)
Manufacturer
MTE
VFD Filter Line
RLW Series
VFD Filter Watts Loss
5.4 Watts
VFD Filter Inductance
0.39Mh
Features
Optimized design for peak performance in a compact and lightweight package
Small footprint, ideal for OEM’s, Integrators, and Panel Builders
Smaller size and weight than other standard reactor products available in the industry
Adapter plate allows for drop-in replacement of other reactors (available on most models)
DIN Rail mounting option
Expanded inductance values and low current offerings to support both NEC and IEC world-wide motor applications
Suitable for application to single phase drives to provide transient protection as well
Crossover Tables available for other standard reactors
Ratings from 0.5A through 750A available
