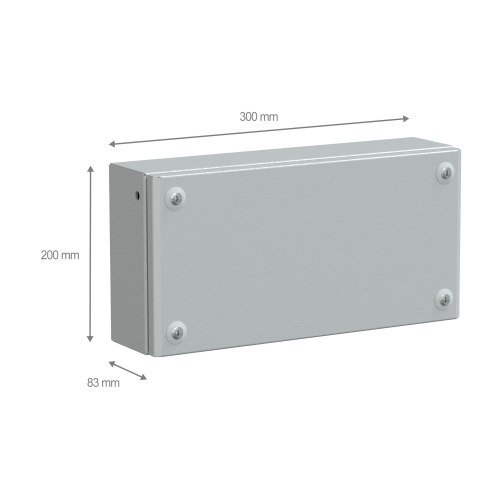

Schneider Electric NSYSBM20308 Spacial SBM Wall mounted Sheet Steel Enclosure - IP66, 7.87" x 11.81" x 3.15" (HxWxD)

Schneider Electric NSYSBM20308 is a wall-mounted Spacial SBM enclosure made from sheet steel with a gray RAL 7035 surface finish. It features a plain door with a half turn metal screw for cover fixing. The captive screw PZ2 lock outside the sealed area ensures security, while removable parts like the cover make maintenance easier. With an operating temperature range of -31…176 °F (-35…80 °C), it is suitable for various environments.

Specifications
Component	Steel Enclosure
Enclosure Depth	3.15"
Manufacturer	Schneider Electric
Enclosure Height	7.87"
Enclosure Mount Type	Wall Mount
Enclosure Composition	Steel
Enclosure Impact Rating	IK10
Enclosure Latch Type	Captive Screw
Enclosure Width	11.81"
Line	Spacial SBM
