Code: 592670

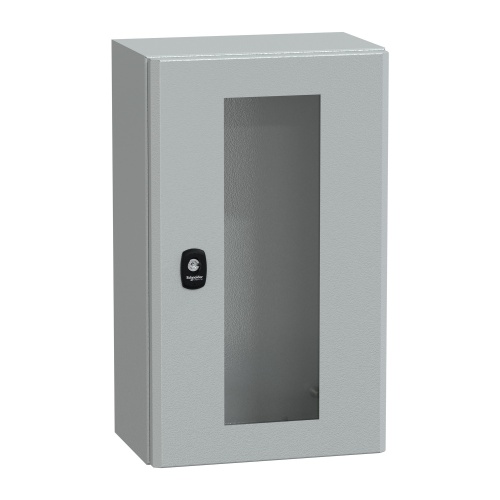

Schneider Electric NSYS3D5320T Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 19.69" x 11.81" x 7.87" (HxWxD)
Normally In Stock
Schneider Electric NSYS3D5320T - Steel - 3 mm double-bar lock - IK08 - NEMA 4X/13 - 1 Door: Glass - Without Mounting Plate - Standard - 19.69" x 11.81" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$144.40
Sale Price
$120.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYS3D5320T from the Spacial range is a robust steel enclosure with a reversible glass door (120° opening) for front accessibility. It features a 3 mm double-bar lock for security, a gray RAL 7035 color, and a standard gland plate for cable management. This wall-mounting enclosure is designed for NEMA 4X/13 protection and has undergone electromagnetic field immunity testing for reliable performance.
Specifications
Enclosure Depth
7.87"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Height
19.69"
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK08
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Door Type
Glass
Enclosure Width
11.81"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with glazed door

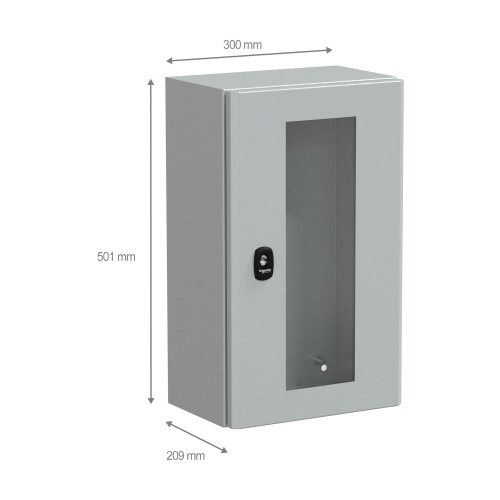

500 x 300 x 200 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 66, IK08, Grey RAL 7035
1 cable gland plate included, standard
Extensive range of accessories
Packaging is reusable after assembly.
