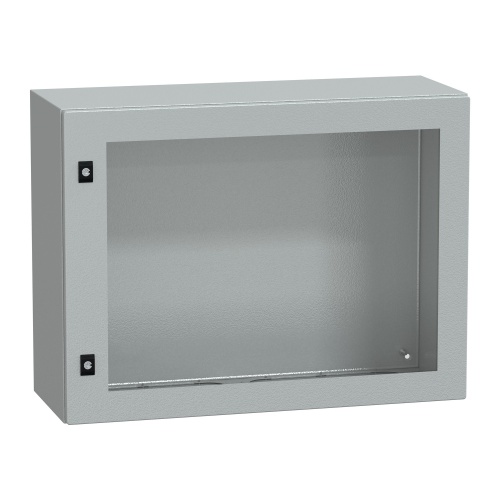

Schneider Electric NSYCRN68300T Spacial CRN Wall-mounting Steel Enclosure - IP66, 23.62" x 31.5" x 11.81" (HxWxD)
Normally In Stock
Code: 592562
Schneider Electric NSYCRN68300T - Steel - 3 mm double-bar lock - IK08 - IP66 - 1 Door: Glass - Without Mounting Plate - Standard - 23.62" x 31.5" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$413.20
Sale Price
$344.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYCRN68300T from the Spacial range is a durable enclosure made of body steel, with a steel and security glass door that opens in a reversible 120°. It features a 3mm double-bar lock for added security. With front accessibility, the enclosure has a standard gland plate and can be easily mounted on a wall. It weighs 46.30lb and offers IK08 degree of protection. Suitable for various applications, it is a reliable and practical option.
Specifications
Enclosure Depth
11.81"
Enclosure Width
31.5"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Impact Rating
IK08
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Height
23.62"
Enclosure Door Type
Glass
Enclosure Gland Plate
Standard
Line
Spacial CRN
Features
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application
This compact enclosure is composed of body, cable gland plate, door, lock
The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant
It has IP66 and IK08 protection level, which can help protect against impact, water and dust
The dimensions are (W) 800 mm x (H) 600 mm x (D) 300 mm
It features a back welded with double profile forming a protected sealed area, sides made from a single folded section

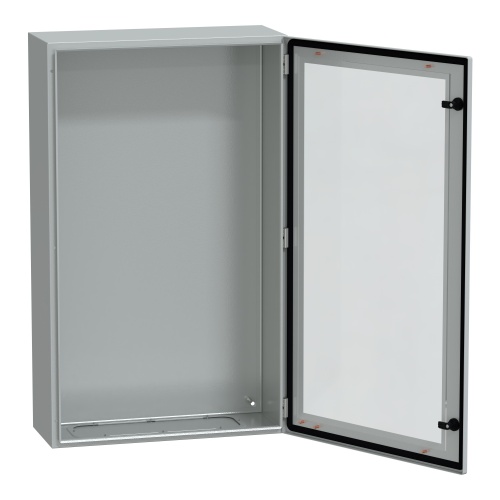

The door type is glazed, it has 1 door(s) and the door opening side is reversible
Equipped with a 3 mm double-bar lock lock type
Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish
This compact enclosure is c.UL certified.
