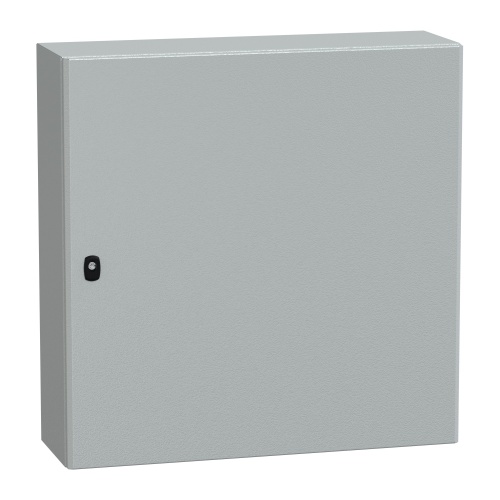

Schneider Electric NSYS3D8825 Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 31.5" x 31.5" x 9.84" (HxWxD)
Normally In Stock
Code: 592537
Schneider Electric NSYS3D8825 - Steel - 3 points lock, 3 mm double-bar - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Standard - 31.5" x 31.5" x 9.84" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$269.39
Sale Price
$224.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Spacial S3D ( NSYS3D8825) is a gray steel enclosure with a solid reversible door that opens 120°. It features a three-point lock with a 3mm double-bar for secure access. The front face includes one door and a standard gland plate, while the installation accessory type is wall-mounting. With an NEMA 4X/13 degree of protection, it offers durability and accessibility for operation.
Specifications
Enclosure Depth
9.84"
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
31.5"
Enclosure Height
31.5"
Manufacturer
Schneider Electric
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Latch Type
3 Point Lock
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with plain door
800 x 800 x 250 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 66, IK10, Grey RAL 7035
2 cable gland plates included, standard
Extensive range of accessories
Packaging is reusable after assembly.
