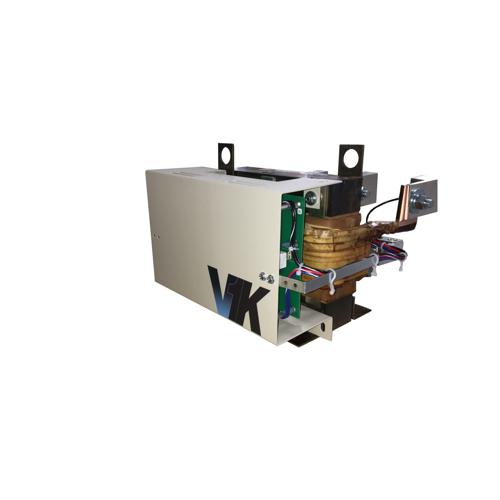

TCI V1K305A00EX dv/dT Output Filter - V1K, 480V, 305A, 3 Phase, 250 HP, Open, 60 Hz
Normally In Stock
Code: 585456
TCI V1K305A00EX - V1K, 600V max, 305A, 3 Phase, Open, dV/dT Output Filter, UL Listed, 250 HP, 60 Hz, 325 Watts Loss - 8.75" x 11.75" x 12.25" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks$3011.26
Sale Price
$2509.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI V1K305A00EX - The V1K Greatly extends motor and cable life from harmful dv/dt caused by PWM VFDs and provides motor protection by limiting voltage spikes to below 1,000 V. Suitable for applications with lead lengths from 100 – 1,000 ft. Used for carrier frequencies over 4kHz. but less than 6kHz.
Specifications
VFD Filter Voltage
480 Volt
VFD Filter Enclosure
Open
VFD Filter Horsepower
250 HP
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Frequency
60 Hz
VFD Filter Watts Loss
325 Watts
VFD Filter Line
(V1K) Output Filter
Filter Type
Dv/Dt
Features
Limits voltage spikes to below 1,000 V for applications with lead lengths up to 1,000 ft on 480 V systems.
Reduces motor heating, noise and vibration.
Prevents motor failure with protection against motor insulation breakdown.
Reduces Common Mode by a minimum of 30%.
Improves system productivity by increasing motor bearing life
208 - 600 VAC system compatibility
2 - 750 Amps range
Heavy Duty model available for higher carrier frequency (6 kHz)
Optional Thermal switch
