TCI KMG12C01P - MotorGuard, 600V, 12A, 3 Phase, 10 HP, 60 Hz, UL Type 1
Normally In Stock
Code: 585007
TCI KMG12C01P - MotorGuard, 600V, 12A, 3 Phase, UL Type 1, Sinewave Filter, PQconnect w/ Modbus RTU - 31.65" x 17.74" x 12.54" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks$7660.33
Sale Price
$6383.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI KMG12C01P - The KMG with PQconnect provides connectivity into your sine wave filter. TCI’s sine wave filter converts the PWM wave form to a near sinusoidal wave form by attenuating the carrier frequency, allowing sensitive applications to take advantage of the efficiencies and savings that PWM output power supplies and VFDs can offer. Greatly extends motor and cable life from harmful VFD PWM drives. Good for up to 15,000ft. cable leads.
Specifications
VFD Filter Horsepower
10 HP
VFD Filter Voltage
600 Volt
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Frequency
60 Hz
VFD Filter Line
(KMG) Sine Wave Filter
VFD Filter Enclosure
UL Type 1
Filter Type
Sine Wave
Features
Less than 5% THVD performance
Eliminates high dV/dt voltage spikes ensuring optimal motor and cable protection.
Reduces motor noise, vibration and heat
Universal acceptance – can be used with virtually all AC induction motors, lead lengths and lead types and used with a wide range of carrier frequencies from 2 kHz to 16 kHz
Reach long lead lengths up to 15,000 ft. for specific applications
Modbus RTU communications

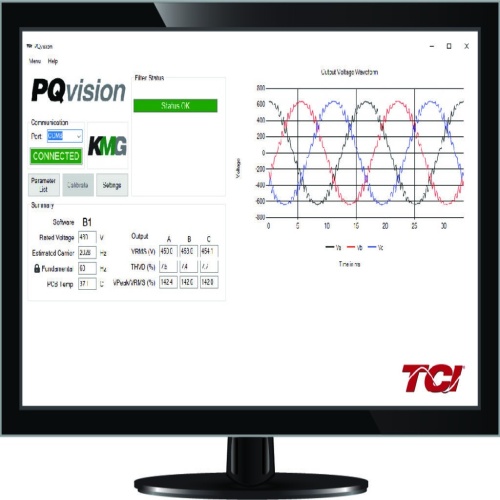

Provides real-time access to waveforms and equipment performance for SCADA systems
Monitors status of filter components and performance
Ideal for constant torque applications
