Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 582902

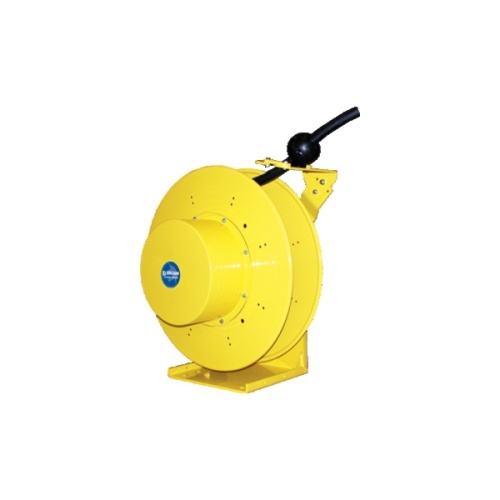

Ericson 6143-70 Pow-R-Reel Industrial Grade - High Cap Cable Reel - 70 ft, 14 AWG, 12 Amp, 600 Volt, Yellow
Normally In Stock
Ericson 6143-70 Reel Ind. Grade, 70 Ft Of 14/3 Sow, Blunt Cable End, Primary Feeder = Coiled Wire Leads @ 1-2 Ft - 30" x 31" x 31" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$4517.11
Sale Price
$3764.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson Yellow Industrial Grade - High Cap cable with NEMA 4 rating is built with Heavy-Duty All-Steel construction, a 70ft long SOW cable, and a load capacity of 12 Amps. Ideal for utility trucks, overhead cranes, hoists, aviation hangers, and automated material handling. It has a 600V capacity and features a 6000 Reel Type with a 19" spool diameter. Finished with yellow powder-coated metal, it includes a blunt cable end and a 3-conductor design with 14 AWG. Suitable for field installation with a 1" NPT Female Feeder Hub. - Ideal for use in utility trucks, overhead cranes (classes A-C), hoists, aviation hangers, and automated material handling
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Sub Component
Industrial Grade - High Cap Cable Reel
Voltage
600 Volt
Reel Type
6000 - Heavy Industrial Duty (19" Spool Diameter)
Construction
Heavy-Duty All-Steel
Finish
Yellow Powder Coated Metal
Wire Gauge
14 AWG
Cable Type
SOW
Load Capacity (Amps)
12 Amp
Features
cULus listed for both US and Canada
Made in USA
Ratings through 35A-150A
250V: 4 or more conductors
600V: 1-4 conductors
Cable Ranges:
SOOW-A
Type W
Type G-GC
Available with and without feeder cable
Operating Temperature Range: -22° F to 86° F (-30° C to 30° C)
Designed for indoor and outdoor use
Ratchet style return
Easy ratched lock-out for constant tension and return
Adjustable guide arm with 12 positions for easy payout positioning
Rugged, all steel construction
Yellow powder coat finish standard
Sealed, lifetime lubricated spring motor canister for easy and safe spring replacement
NEMA 4 enclosed precision slip ring assembly for contacts and grounded slip ring
2-piece roller guide can be repositioned to 4 different locations
4-roller guides for direct or lateral pull-outs
Adjustable ball stop included in 3 & 4 conductor reels, other styles optional
Wide range of secondary power attachments
Pivot base available for 345-degree swivel applications
