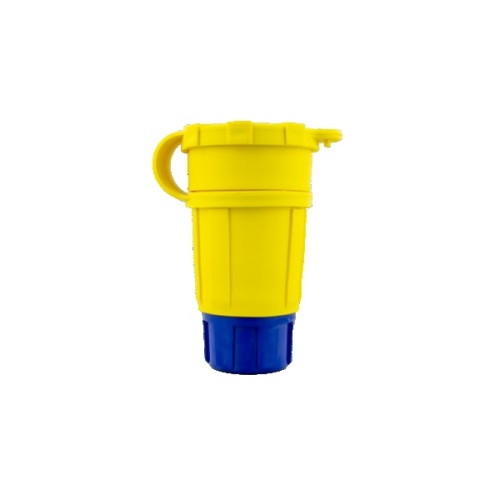

Ericson 2612-CW6P Extreme Grade, Watertight Connector - Yellow, IP69K, 30 Amp, 250 Volt
Normally In Stock
Code: 576169

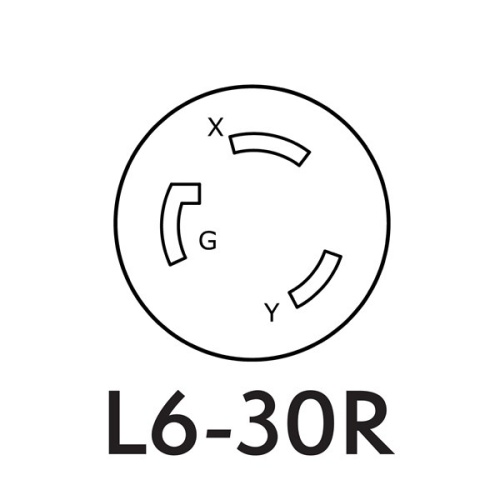

Ericson 2612-CW6P Connector NEMA L6-30, Perma-Tite Extreme Grade, Ip69k Watertight Yellow Wiring Device, Locking 30 Amp 250V 1PH 2P/3w, Size = Med3, 29w48 - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$90.50
Sale Price
$75.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson Yellow Extreme Grade Connector (Sku: 2612-CW6P) is a watertight (IP69K) device designed for various environments. With a NEMA L6-30 configuration and 30 amps of power, it provides a secure locking connection. Perfect for construction sites, entertainment venues, and food processing plants. CSA certified and NSF/ANSI/3-A 14159-1 compliant. Case Qty: 27, Carton Qty: 3.
Specifications
Receptacle Amperage
30 Amp
Component
Connector
Receptacle Voltage
250 Volt
Receptacle Color
Yellow
Receptacle IP Rating
IP 69K
Manufacturer
Ericson
Receptacle Phase
1
Receptacle Number of Poles
2 Pole
Receptacle Number of Wires
3 Wire
Receptacle Blade Style
Locking
Features
UL & CSA Approvals
NEMA 4, 4X, 6, 6P and IP69K
Exclusive 8 Point Tongue & Groove Sealing System
External Husk Molded from PBT for high resistance chemicals, moisture, and petroleum absorption
Husk Groves for secure non-slipping gloved grip
Color Coded Sealing Bushings are designed with various sizes to ensure secure dust and water-tight seal
Nickel Plated Device Blades and Contacts offer superior corrosion resistance and service life Nonmetallic Cord Grip Nut and Grommet System offer a wide range of cable sizes under one catalog number 82005
Removable & Replaceable self-retained cap standard for female connector and optional for plug
