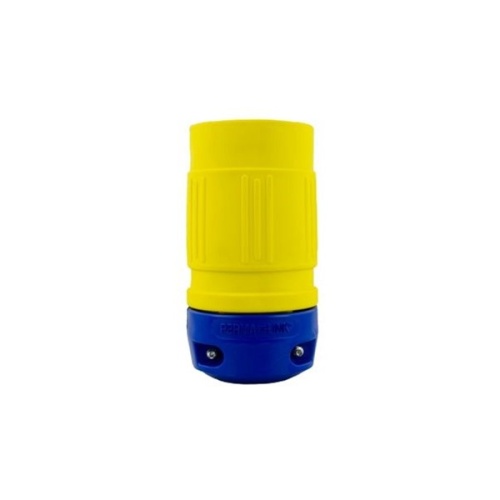

Ericson 2612-C Industrial Grade (TPV) Connector - Yellow, 30 Amp, 250 Volt
Normally In Stock
Code: 576167
Ericson 2612-C Connector NEMA L6-30, Perma-Link Industrial Grade Yellow Wiring Device, Locking 30 Amp 250V 1PH 2P/3w, Size = Med3, 2948 - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$75.71
Sale Price
$63.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

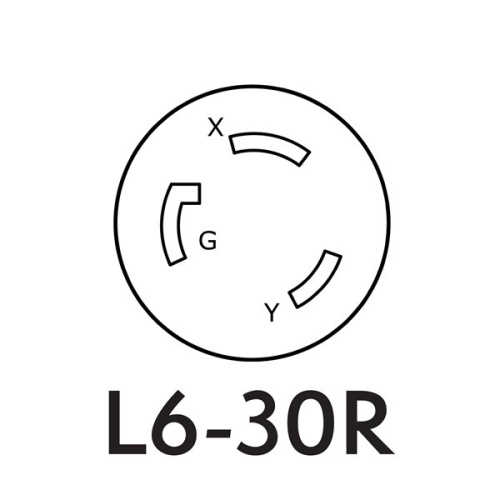

Ericson 2612-C is a yellow, industrial-grade TPV connector suitable for indoor use. It is designed for a phase 1 electrical system with a voltage of 250V and an amperage of 30 amps. The connector has a NEMA L6-30 configuration with 2 poles and 3 wires, featuring a locking blade style. It is CSA certified to CSA C22.2 No.42, File 31943. Each carton contains 10 units.
Specifications
Receptacle Amperage
30 Amp
Component
Connector
Receptacle Voltage
250 Volt
Receptacle Color
Yellow
Manufacturer
Ericson
Receptacle Phase
1
Receptacle Location
Indoor
Receptacle Number of Poles
2 Pole
Receptacle Number of Wires
3 Wire
Receptacle Blade Style
Locking
Features
UL & CSA Approvals
External TPE Molded Husk offers wider temperature range, higher crush and chemical resistance
Husk Groves for secure non-slipping gloved grip
Internal Dust and Moisture Seal prevents migration of harmful dust and moisture intrusion
Device Blades and Contact are Plated for better contact and service life
Floating Cord Clamp reduces cable jacket strain and resists cable pull-out
Removable Cord Clamp insert allow a wide range of cable diameters
Interchangeable Plug & Connector Husks offer exceptional blade protection & seal (Models 1510-P/1610-C, 1512-P/1612-C & 1514-P/1614-C)
