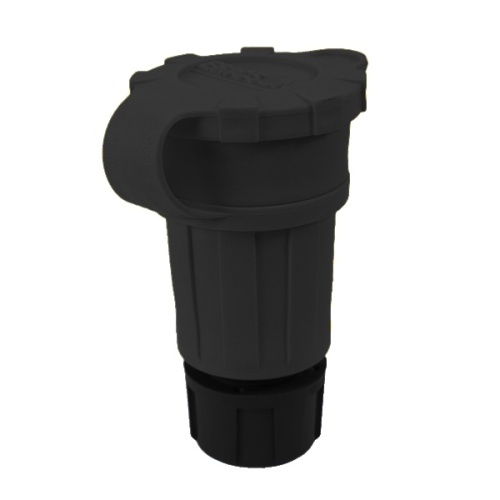

Ericson 2610-CW6P-BLK Extreme Grade, Watertight Connector - Black, IP69K, 30 Amp, 125 Volt
Normally In Stock
Code: 576166

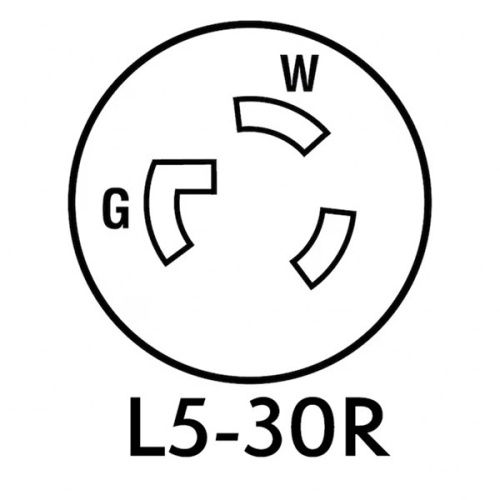

Ericson 2610-CW6P-BLK Connector NEMA L5-30, Perma-Tite Extreme Grade, Ip69k Watertight Black Wiring Device, Locking 30 Amp 125V 1PH 2P/3w, Size = Med3, 29w47 - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$95.11
Sale Price
$79.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson black Extreme Grade watertight connector, 2610-CW6P-BLK, is perfect for any environment requiring a sealed plug and connector to prevent water ingress. With a NEMA L5-30 configuration, it operates with 2 poles and 3 wires, delivering 30 Amps at 125V. CSA certified for safety and suitable for applications ranging from construction sites to food processing plants. Sold in cartons of 3.
Specifications
Receptacle Amperage
30 Amp
Receptacle Color
Black
Component
Connector
Receptacle Voltage
125 Volt
Receptacle IP Rating
IP 69K
Manufacturer
Ericson
Receptacle Phase
1
Receptacle Number of Poles
2 Pole
Receptacle Number of Wires
3 Wire
Receptacle Blade Style
Locking
Features
UL & CSA Approvals
NEMA 4, 4X, 6, 6P and IP69K
Exclusive 8 Point Tongue & Groove Sealing System
External Husk Molded from PBT for high resistance chemicals, moisture, and petroleum absorption
Husk Groves for secure non-slipping gloved grip
Color Coded Sealing Bushings are designed with various sizes to ensure secure dust and water-tight seal
Nickel Plated Device Blades and Contacts offer superior corrosion resistance and service life Nonmetallic Cord Grip Nut and Grommet System offer a wide range of cable sizes under one catalog number 82005
Removable & Replaceable self-retained cap standard for female connector and optional for plug
