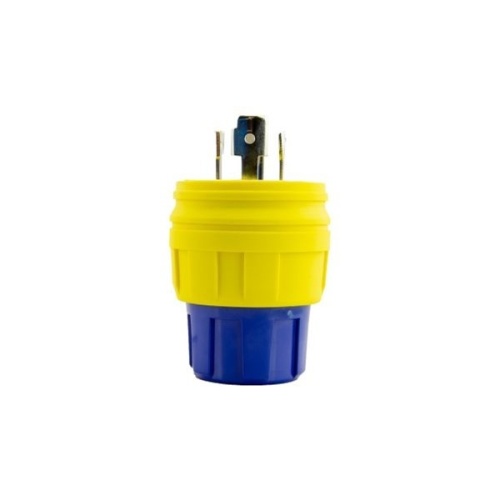

Ericson 2530-PW6P Extreme Grade, Watertight Plug - Yellow, IP69K, 30 Amp, 120 Volt, 208 Volt
Normally In Stock
Code: 576160
Ericson 2530-PW6P Plug NEMA L18-30, Perma-Tite Extreme Grade, Ip69k Watertight Yellow Wiring Device, Locking 30 Amp 120/208V 3PH 4P/4w, Size = Lg, 28w78 - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$74.51
Sale Price
$62.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson Yellow Extreme Grade Watertight Plug ( 2530-PW6P) is designed to effectively prevent water ingress in any environment. Its robust construction makes it suitable for construction sites, entertainment venues, and food processing plants during washdown procedures. With a NEMA L18-30 configuration, it offers a secure locking blade style and is NSF/ANSI/3-A 14159-1 compliant. Sold in cartons of 5.
Specifications
Receptacle Amperage
30 Amp
Component
Plug
Receptacle Voltage
120 Volt
Receptacle Voltage
208 Volt
Receptacle Color
Yellow
Receptacle IP Rating
IP 69K
Manufacturer
Ericson
Receptacle Blade Style
Locking
Receptacle Number of Wires
4 Wire
Receptacle Phase
3
Receptacle Number of Poles
4 Pole
Features
UL & CSA Approvals
NEMA 4, 4X, 6, 6P and IP69K
Exclusive 8 Point Tongue & Groove Sealing System
External Husk Molded from PBT for high resistance chemicals, moisture, and petroleum absorption
Husk Groves for secure non-slipping gloved grip
Color Coded Sealing Bushings are designed with various sizes to ensure secure dust and water-tight seal
Nickel Plated Device Blades and Contacts offer superior corrosion resistance and service life Nonmetallic Cord Grip Nut and Grommet System offer a wide range of cable sizes under one catalog number 82005
Removable & Replaceable self-retained cap standard for female connector and optional for plug
