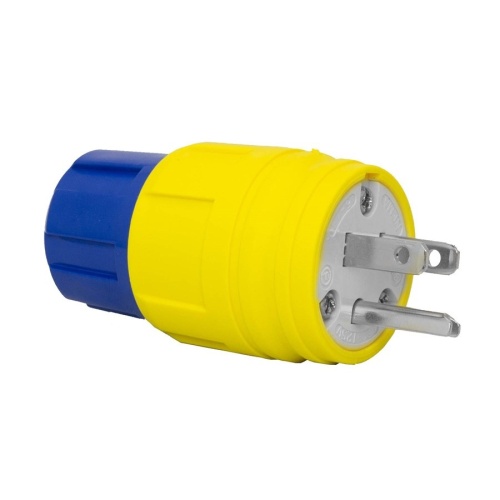

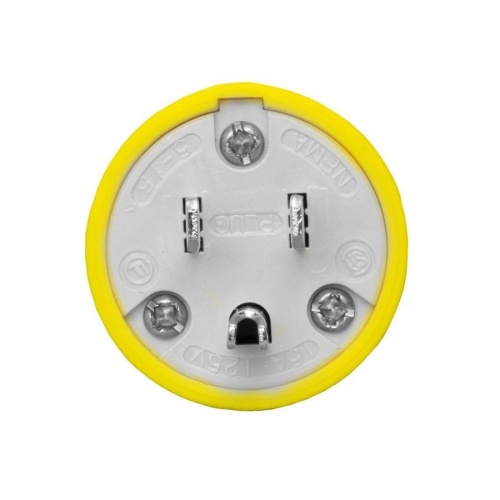

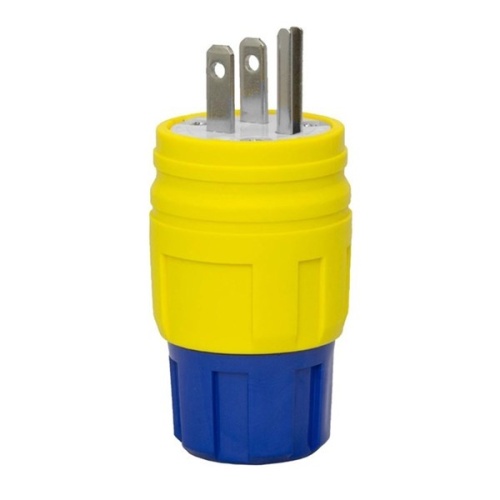

Ericson 1510-PW6P Extreme Grade, Watertight Plug - Yellow, IP69K, 15 Amp, 125 Volt
Normally In Stock
Code: 575949
Ericson 1510-PW6P Plug NEMA 5-15, Perma-Tite Extreme Grade, Ip69k Watertight Yellow Wiring Device, Straight 15 Amp 125V 1PH 2P/3w, Size = Sm, 14w47 - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$28.92
Sale Price
$24.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson Yellow Extreme Grade Watertight Plug (Sku: 1510-PW6P) is ideal for environments requiring a watertight seal to prevent water ingress. With a Phase 1 rating, it is suitable for various applications such as construction sites and entertainment venues. Designed for a Washdown procedure, it has a NEMA 5-15 configuration, 2P/3W poles/wires, and operates at 125V and 15 Amps. CSA certified and NSF/ANSI/3-A 14159-1 compliant. Case Qty: 100, Carton Qty: 10.
Specifications
Receptacle Amperage
15 Amp
Component
Plug
Receptacle Voltage
125 Volt
Receptacle Color
Yellow
Receptacle IP Rating
IP 69K
Manufacturer
Ericson
Receptacle Phase
1
Receptacle Number of Poles
2 Pole
Receptacle Number of Wires
3 Wire
Receptacle Blade Style
Straight
Features
UL & CSA Approvals
NEMA 4, 4X, 6, 6P and IP69K
Exclusive 8 Point Tongue & Groove Sealing System
External Husk Molded from PBT for high resistance chemicals, moisture, and petroleum absorption
Husk Groves for secure non-slipping gloved grip
Color Coded Sealing Bushings are designed with various sizes to ensure secure dust and water-tight seal
Nickel Plated Device Blades and Contacts offer superior corrosion resistance and service life Nonmetallic Cord Grip Nut and Grommet System offer a wide range of cable sizes under one catalog number 82005
Removable & Replaceable self-retained cap standard for female connector and optional for plug
