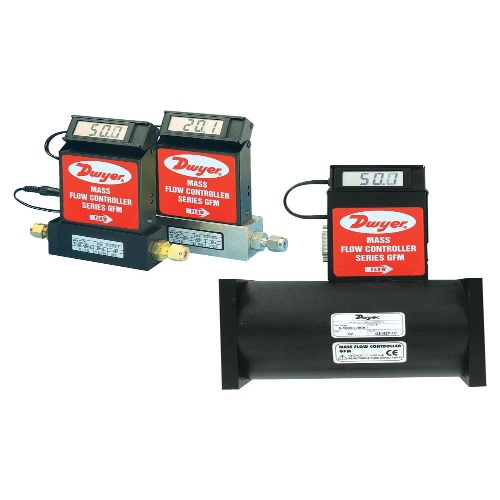

Dwyer GFM-1108 Gas Mass Flow Meter
Normally In Stock
Code: 574679
Dwyer GFM-1108 - Gas mass flow meter, range 0-2 LPM. Specified flow range is for an equivalent flow of nitrogen at 70°F (21°C) @ 760 mm Hg, 1/4" compression fitting.
Condition: New
Usually ships Same Day or Next Day$2735.15
Sale Price
$2279.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer GFM-1108 Gas Mass Flow Meter is a high-accuracy instrument for measuring gas flow rates. It operates in a temperature range of 32 to 122°F (0 to 50°C) and provides an accuracy of ±1% FS. The response time is 2 seconds, and it has a voltage of ±12 VDC. The output options include linear 0-5 VDC and 4-20 mA. It is suitable for clean gases and has a 90° tiltable display. The wetted material is anodized aluminum, brass, 316 SS, and fluoroelastomer o-rings. It can withstand pressures up to 1000 psig (68.9 bar) and has various process connections. The Dwyer GFM-1108 offers a particulate size of 5 microns, repeatability of ±0.25% of FS, and leak integrity of 1 x 10-9 sccs of Helium.
Specifications
(Instrument-Sensor) Application
Gas
Component
Flow Meter
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Measurement Accuracy
1.5%
(Instrument-Sensor) Type
Gas Mass
Manufacturer
Dwyer Instruments
Features
Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Actual gas flow is displayed in engineering units on a 3-digit, 90° tiltable LCD readout
Units can be used with Series GFT Flow Totalizer for applications requiring totalization
Series GFM includes a NIST traceable certificate.
