Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

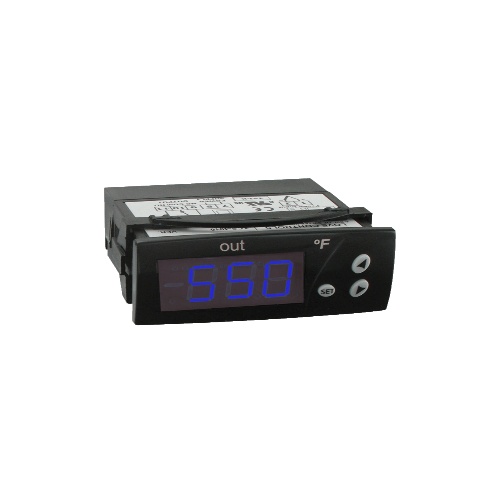

Dwyer TCS-4031 Thermocouple Temperature Switch
Normally In Stock
Code: 571155
Dwyer TCS-4031 - Thermocouple temperature switch, type J/K/S Input, 12 VAC/VDC, °C.
Condition: New
Usually ships Same Day or Next Day$124.68
Sale Price
$103.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TCS-4031 is a Thermocouple Temperature Switch with an ambient temperature range of 32 to 158°F (0 to 70°C). It has an accuracy of ±1% FS, a 3-digit red display, and accepts Type J or K thermocouples. The switch has a SPDT relay output rated 16 A @ 240 VAC resistive, and a front panel rating of IP64. The power requirement is 115 VAC, 230 VAC, 12 VAC/VDC, or 24 VAC/VDC.
Specifications
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
115 VAC
(Instrument-Sensor) Temperature Range
Storage: -4 - 176°F/-20 - 80°C
(Instrument-Sensor) Supply Voltage
24 VAC/DC
(Instrument-Sensor) Supply Voltage
12 VAC/DC
(Instrument-Sensor) Temperature Range
Ambient: 32 - 158°F/0 - 70°C
Component
Thermocouple
Sub Component
Thermocouple Temperature Switch
Manufacturer
Dwyer Instruments
Features
Monitor and control temperature in heating and cooling applications with the Series TCS Thermocouple Switch
The Series TCS offers a wide temperature range, two selectable alarm sets, and an internal buzzer indicating alarm condition or error
The user can define set point, heating/cooling regulation, cycle time, alarm configuration, load status, and ambient probe adjustment
The thermocouple switch features password protection and error/alarm messaging
Temperature and output status is indicated on the bright red LED display
Use the configuration key (sold separately) to quickly program multiple units
The Series TCS includes a fitting clip for panel mounting, gasket, rear terminal cover and instruction manual.
