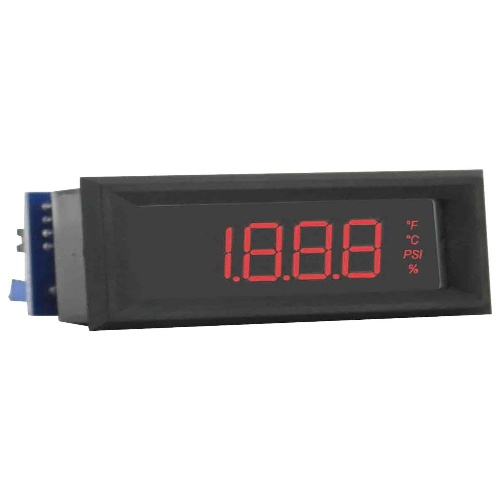

Dwyer DPMP-401 LCD Digital Panel Meter
Normally In Stock
Code: 570894
Dwyer DPMP-401 - LCD digital process meter, loop powered 4 to 20 mA, amber segments.
Condition: New
Usually ships Same Day or Next Day$176.58
Sale Price
$147.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMP-401 is a snap-in bezel LCD Digital Panel Meter with an input range of 4 to 20 mA. It has an accuracy of ±(0.1% FS + 2 count) and temperature range of 32 to 122°F (0 to 50°C). It features adjustable zero and span adjustments, 3-1/2 digit display, and screw terminals for easy connection. The unit operates on control loop power or 12/24 VDC. It supports engineering units like °F, °C, %, psi, and has a 3-position selectable decimal point. The conversion rate is 3 per second with a warm-up time of 10 minutes. The backlight is powered by 24 VDC.
Specifications
Component
Digital Panel Meter
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Manufacturer
Dwyer Instruments
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
