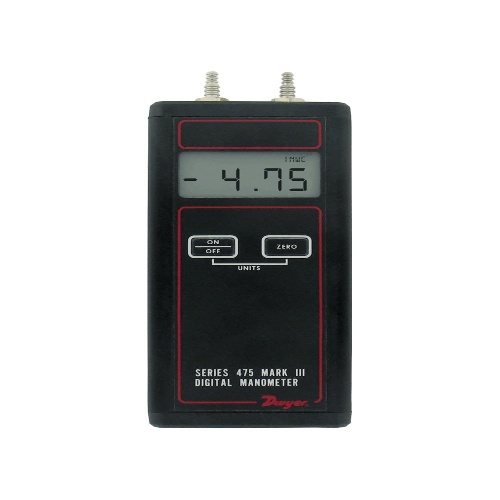

Dwyer 475-1-FM Intrinsically Safe Handheld Digital Manometer
Normally In Stock
Code: 569905
Dwyer 475-1-FM - Handheld digital manometer, range 0-20.00" w.c. (4.982 kPa), max. pressure 10 psig.
Condition: New
Usually ships Same Day or Next Day$511.08
Sale Price
$425.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 475-1-FM is an intrinsically safe handheld digital manometer with a temperature range of 0 to 140°F. It has an accuracy of ±0.5% FS at 60 to 78°F and ±1.5% FS at 32 to 60°F and 78 to 104°F. Powered by a 9V alkaline battery, the manometer features a 0.42" 4-digit LCD display. Suitable for air and compatible combustible gases, it has barbed and compression fittings for tubing connections. The storage temperature limits are -4 to 176°F. Hysteresis is ±0.1% of FS.
Specifications
(Instrument-Sensor) Application
Air And Compatible Combustible Gases
(Instrument-Sensor) Temperature Range
0 - 140°F/-17.8 - 60°C
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) Measurement Accuracy
1.5%
(Instrument-Sensor) Supply Voltage
9 V Battery
Component
Manometer
(Instrument-Sensor) Type
Intrinsically Safe Handheld Digital
Manufacturer
Dwyer Instruments
Features
Rugged aluminum case protects instrument from damage during transport/use
Large, easy to read LCD and simple operation
FM approved to be intrinsically safe in hazardous locations, Class 1, Div 2, Groups A, B, C, D, T4 Ta = 70°C
