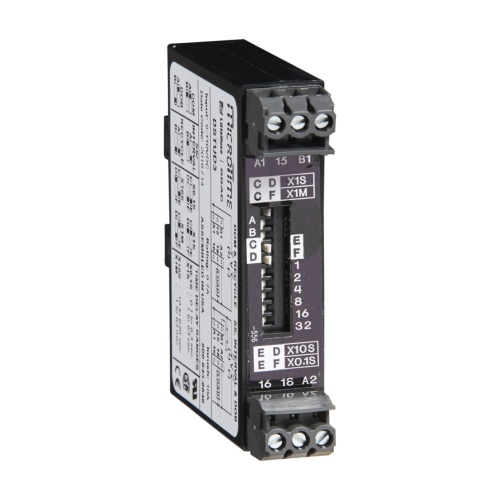

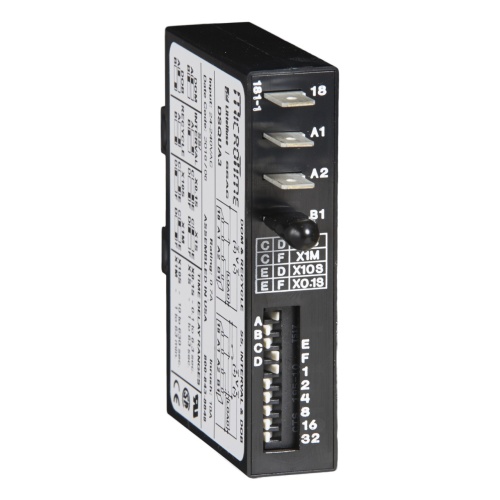

Littelfuse DSTUD3 is an encapsulated, microcontroller-based time delay relay. It has a load rating of 0.7 A steady state and 10 A inrush. The termination type is 0.197 in (5 mm) push-on terminal blocks. It can handle up to #14 AWG wire. The input tolerance ranges from 9 to 110 V dc with a humidity level of 95% relative non-condensing. The repeat accuracy is ±0.1% or ±20 ms. It has a reset time of ≤300 ms and a dielectric breakdown of ≥2000V. The output voltage drop is 1.5 V at 0.7 A. It provides surge protection and has a setting accuracy of ±2% or ±50 ms. The adjustment type is done through 6 switches to adjust the time delay and 2 switches to select 1 of 4 multipliers.
