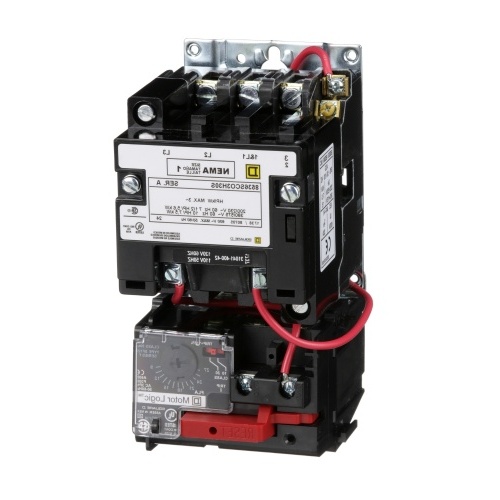

Schneider 8536SCO3V02H30S Square D Nema Motor Starter 120 VAC Coil 3 Poles
Normally In Stock
Code: 56182
Schneider 8536SCO3V02H30S Square D Nema Motor Starter 120 VAC Coil 3 Poles Size 1 27 Amp with Open enclosure. Runs 7.5 @ 240 V 3 Phase and 10 @ 480 V 3 Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making future fixes eas
Condition: New
Usually ships Same Day or Next Day$786.01
Sale Price
$655.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
COMBO STARTER 600VAC 45A NEMA
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter NEMA Size
1
Starter HP
7.5 HP @ 240 VAC 3 Phase
Starter HP
10 HP @ 480 VAC 3 Phase
Starter HP
10 HP @ 575 VAC 3 Phase
Starter HP
7.5 HP @ 208 VAC 3 Phase
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Non-Reversing Starters
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
27 Amp
Manufacturer
Square D
Starter Actions
Type S
Features
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors
Type S motor starters have ratings up to 810 amperes
This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating
This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC
This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions
This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control
This NEMA starter is an open device without an enclosure
This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep
A wide variety of accessories are available for Type S starters
Type S non-reversing NEMA motor starters are UL listed and CSA certified.
