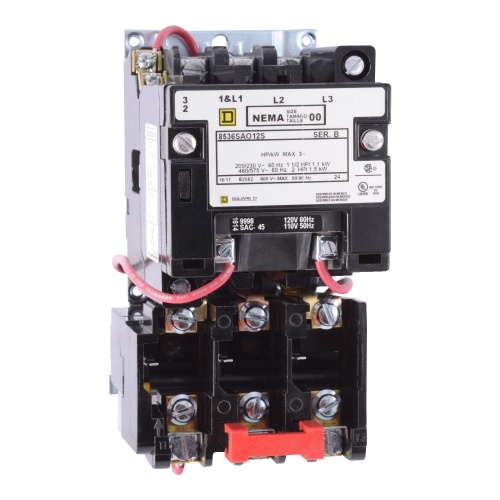

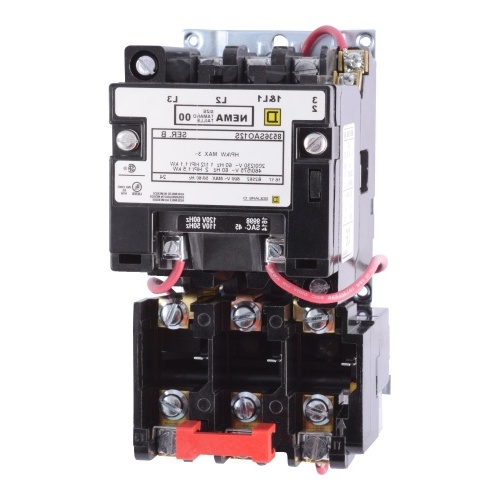

Schneider 8536SCO2V03 Square D Nema Motor Starter 240 VAC Coil 2 Poles
Normally In Stock
Code: 56167
Schneider 8536SCO2V03 Square D Nema Motor Starter 240 VAC Coil 2 Poles Size 1P 27 Amp with Open enclosure. Runs 3 @ 120 V Single Phase and 5 @ 230 V Single Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making future fixes
Condition: New
Usually ships Same Day or Next Day$799.19
Sale Price
$665.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
STARTER MOTOR CONTROL <1000VAC
Specifications
Starter Enclosure Type
Open
Starter Coil Voltage
240 VAC
Starter HP
3 HP @ 120 VAC 1 Phase
Starter HP
5 HP @ 230 VAC 1 Phase
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Non-Reversing Starters
Manufacturer
Schneider Electric
Starter Poles
Two Pole
Starter Amperage
27 Amp
Manufacturer
Square D
Starter Actions
Type S
Features
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors
Type S motor starters have ratings up to 810 amperes
This 2 pole NEMA Size 1P non-reversing starter has a 36 ampere rating
This NEMA Size 1P motor starter has single phase ratings of 3 HP at 115 VAC and 5 HP at 230 VAC
This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control
This NEMA starter is an open device without an enclosure
This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep
A wide variety of accessories are available for Type S starters
Type S non-reversing NEMA motor starters are UL listed and CSA certified.
