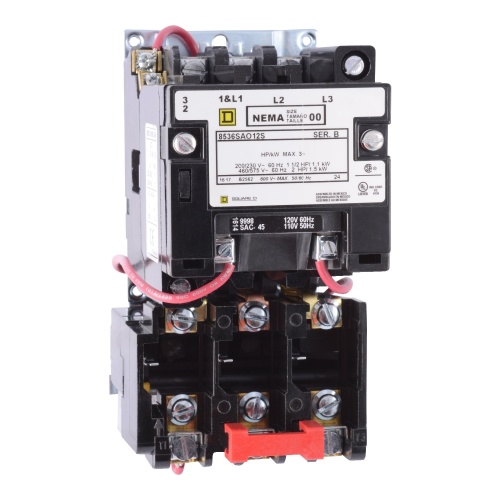

Schneider 8536SAO11V02S Square D Nema Motor Starter 120 VAC Coil 2 Poles
Normally In Stock
Code: 55608
Schneider 8536SAO11V02S Square D Nema Motor Starter 120 VAC Coil 2 Poles Size 00 9 Amp with Open enclosure. Runs 0.33 HP @ 120 V Single Phase and 1 HP @ 230 V Single Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making fu
Condition: New
Usually ships Same Day or Next Day$489.38
Sale Price
$407.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider 8536SDO1V06H30 Square D Nema Motor Starter 480 VAC Coil 3 Poles Size 2 45 Amp with Open enclosure. Runs 15 @ 240 V 3 Phase and 25 @ 480 V 3 Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making future fixes easy.
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter NEMA Size
00
Starter Actions
Non-Reversing
Starter HP
0.33 HP @ 120 VAC 1 Phase
Starter HP
1 HP @ 230VAC 1 Phase
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Non-Reversing Starters
Manufacturer
Schneider Electric
Starter Amperage
9 Amp
Starter Reversing Capability
Non-Reversing
Starter Poles
Two Pole
Manufacturer
Square D
Features
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors
Type S motor starters have ratings up to 810 amperes
This 2 pole NEMA Size 00 non-reversing starter has an 9 ampere rating
This NEMA Size 00 motor starter has single phase ratings of 0.33 HP at 115 VAC and 1 HP at 230 VAC
This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control
This NEMA starter is an open device without an enclosure
This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep
A wide variety of accessories are available for Type S starters
Type S non-reversing NEMA motor starters are UL listed and CSA certified.
